QRW05 Compare reward handlers with speed-bonus

Run multiple trainings with different reward handlers

• continuous-consider-all
• reduced-push-reward
• speed-bonus

The agent tends to stroll around and collect some extra reward by pushing the opponent inside the field. Increasing the 'speed-bonus' should reduce that problem.

The speed bonus was set from 50 tp 150

epoch count: 5000

training.simrunner.RewardHandlerName.continuous-consider-all

Considers all simulation events for calculating the reward.

Possible simulation events created for an agent:

1. After every simulation step:

   • Pushed the opponent. Reward = +0.5
   • Is pushed by the opponent. Reward = -0.1

2. At simulation end:

   • Winner by pushing the opponent: Reward = 100 + t * 50
   • Looser without being pushed: Reward = -100 - t * 50
   • Looser being pushed: Reward: -10

(t * x) is the 'speed bonus'

t = 1 - (s / max_s)

s:     Number of steps when th simulation ended
max_s: Max number of steps for a simulation

Means, the reward/penalty is higher the shorter the simulation ran. The agent gets a higher reward when fast pushing out the opponent, or a higher penalty when fast moving unforced out of the field.

training.simrunner.RewardHandlerName.reduced-push-reward

Considers all simulation events for calculating the reward.

Possible simulation events created for an agent:

1. After every simulation step:

   • Pushed the opponent. Reward = +0.05
   • Is pushed by the opponent. Reward = -0.01

2. At simulation end:

   • Winner by pushing the opponent: Reward = 100 + t * 50
   • Looser without being pushed: Reward = -100 - t * 50
   • Looser being pushed: Reward: -10

(t * x) is the 'speed bonus'

t = 1 - (s / max_s)

s:     Number of steps when th simulation ended
max_s: Max number of steps for a simulation

Means, the reward/penalty is higher the shorter the simulation ran. The agent gets a higher reward when fast pushing out the opponent, or a higher penalty when fast moving unforced out of the field.

training.simrunner.RewardHandlerName.speed-bonus

Considers all simulation events for calculating the reward.

Possible simulation events created for an agent:

1. After every simulation step:

   • Pushed the opponent. Reward = +0.05
   • Is pushed by the opponent. Reward = -0.01

2. At simulation end:

   • Winner by pushing the opponent: Reward = 100 + t * 150
   • Looser without being pushed: Reward = -100 - t * 150
   • Looser being pushed: Reward: -10

(t * x) is the 'speed bonus'

t = 1 - (s / max_s)

s:     Number of steps when th simulation ended
max_s: Max number of steps for a simulation

Means, the reward/penalty is higher the shorter the simulation ran. The agent gets a higher reward when fast pushing out the opponent, or a higher penalty when fast moving unforced out of the field.

training.parallel.ParallelConfig.q-rw-1

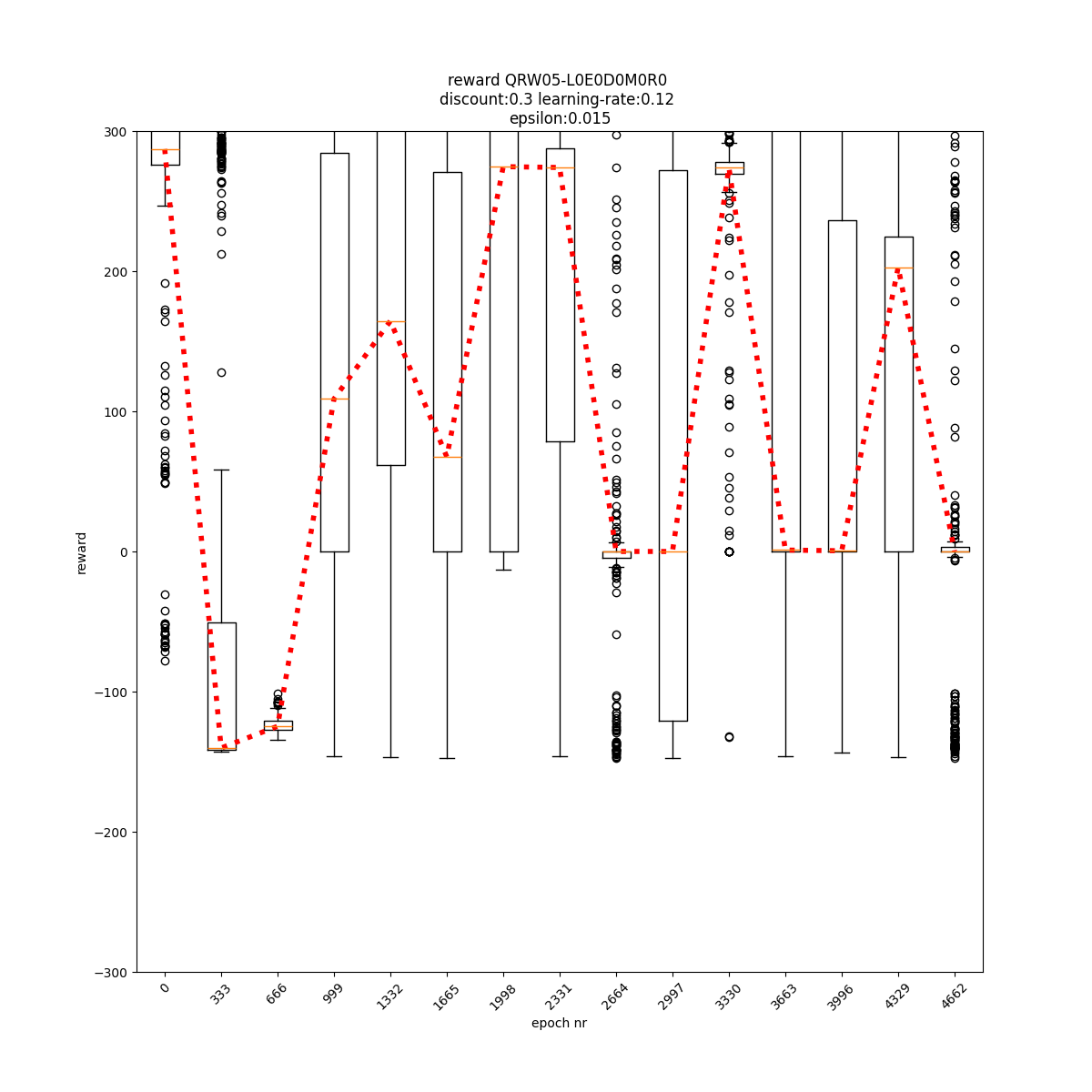

L0 E0 D0 M0 R0

q-values
video 0 video 1 video 2 video 3
video 4 video 5 video 6 video 7
video 8 video 9 video 10

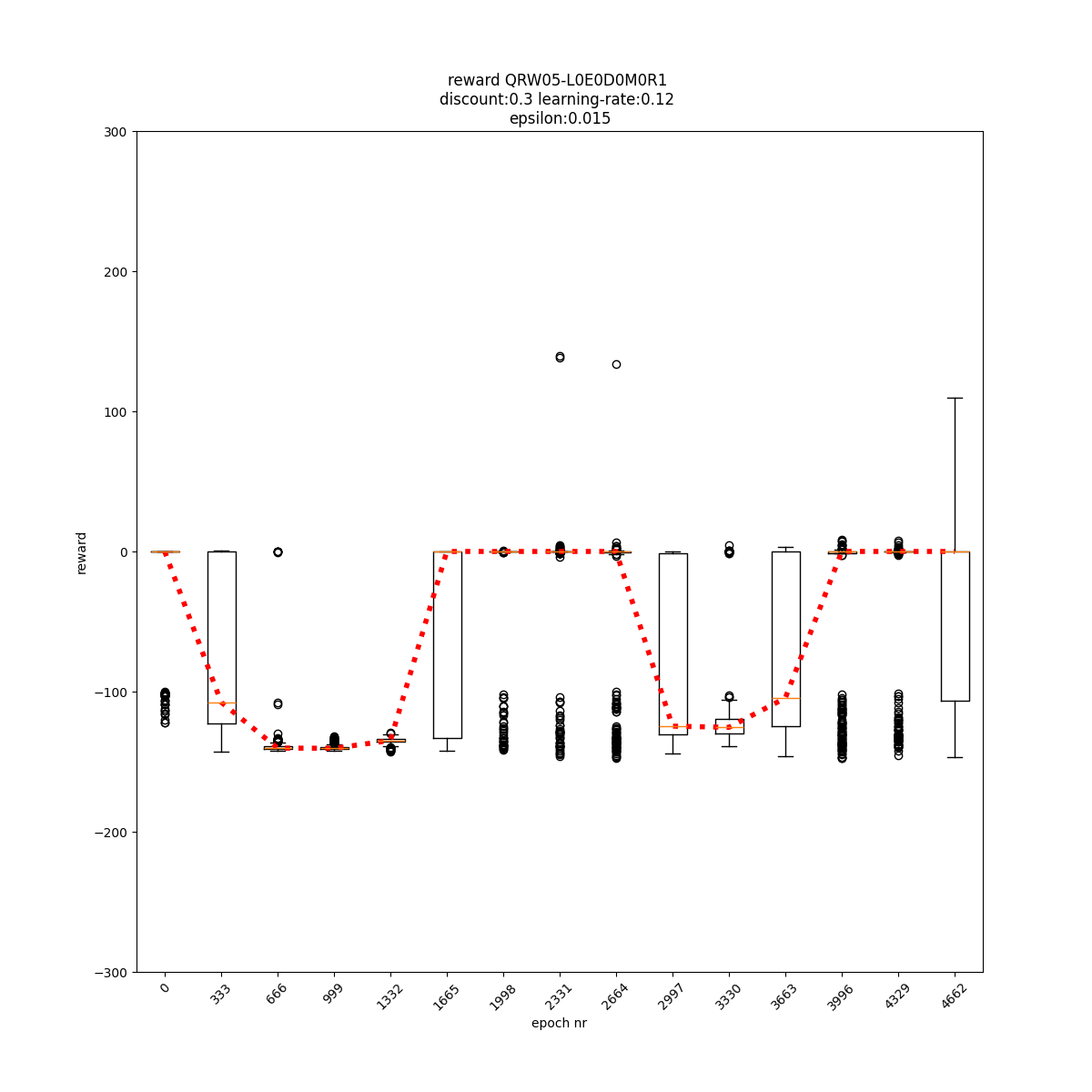

L0 E0 D0 M0 R1

q-values
video 0 video 1 video 2 video 3
video 4 video 5 video 6 video 7
video 8 video 9 video 10

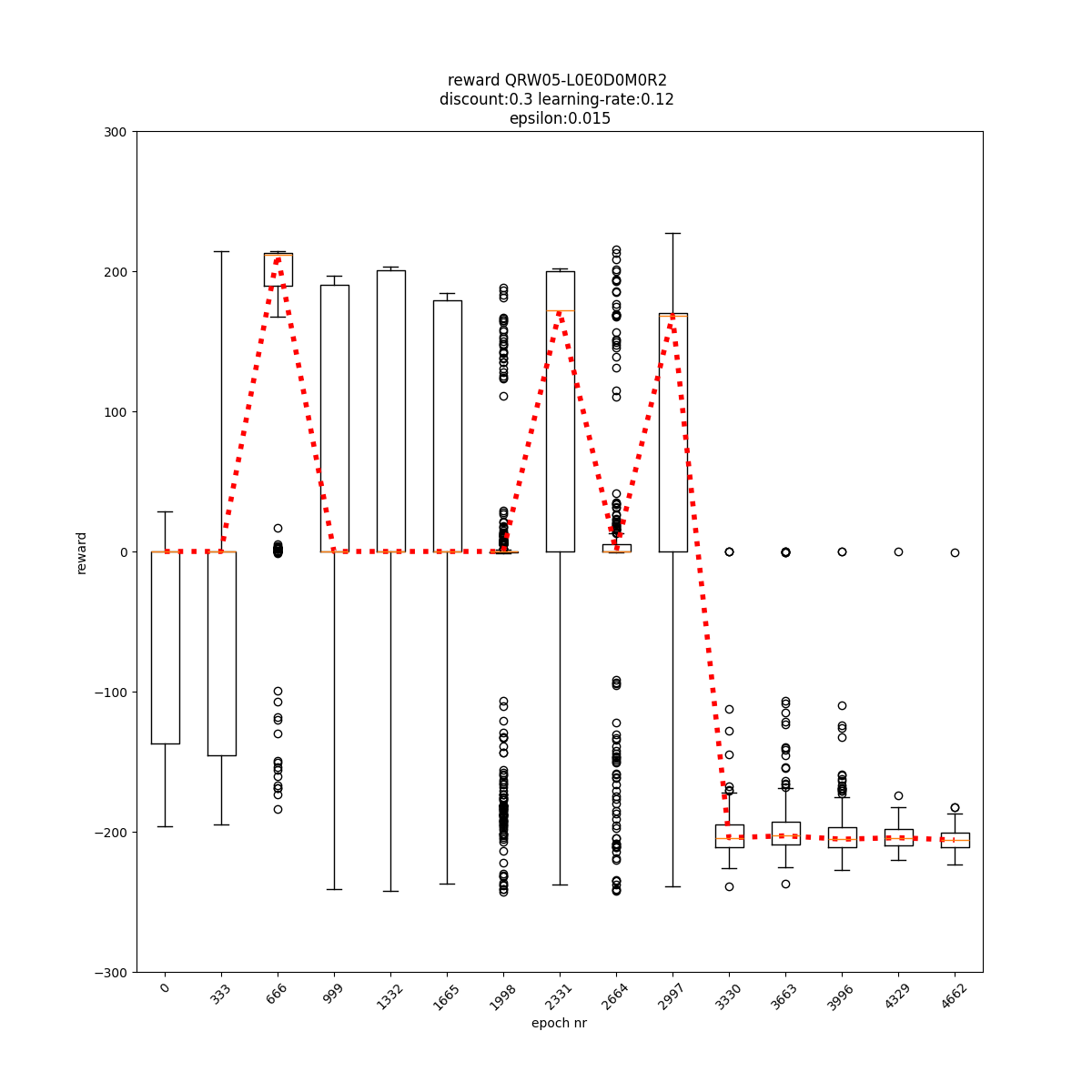

L0 E0 D0 M0 R2

q-values
video 0 video 1 video 2 video 3
video 4 video 5 video 6 video 7
video 8 video 9 video 10

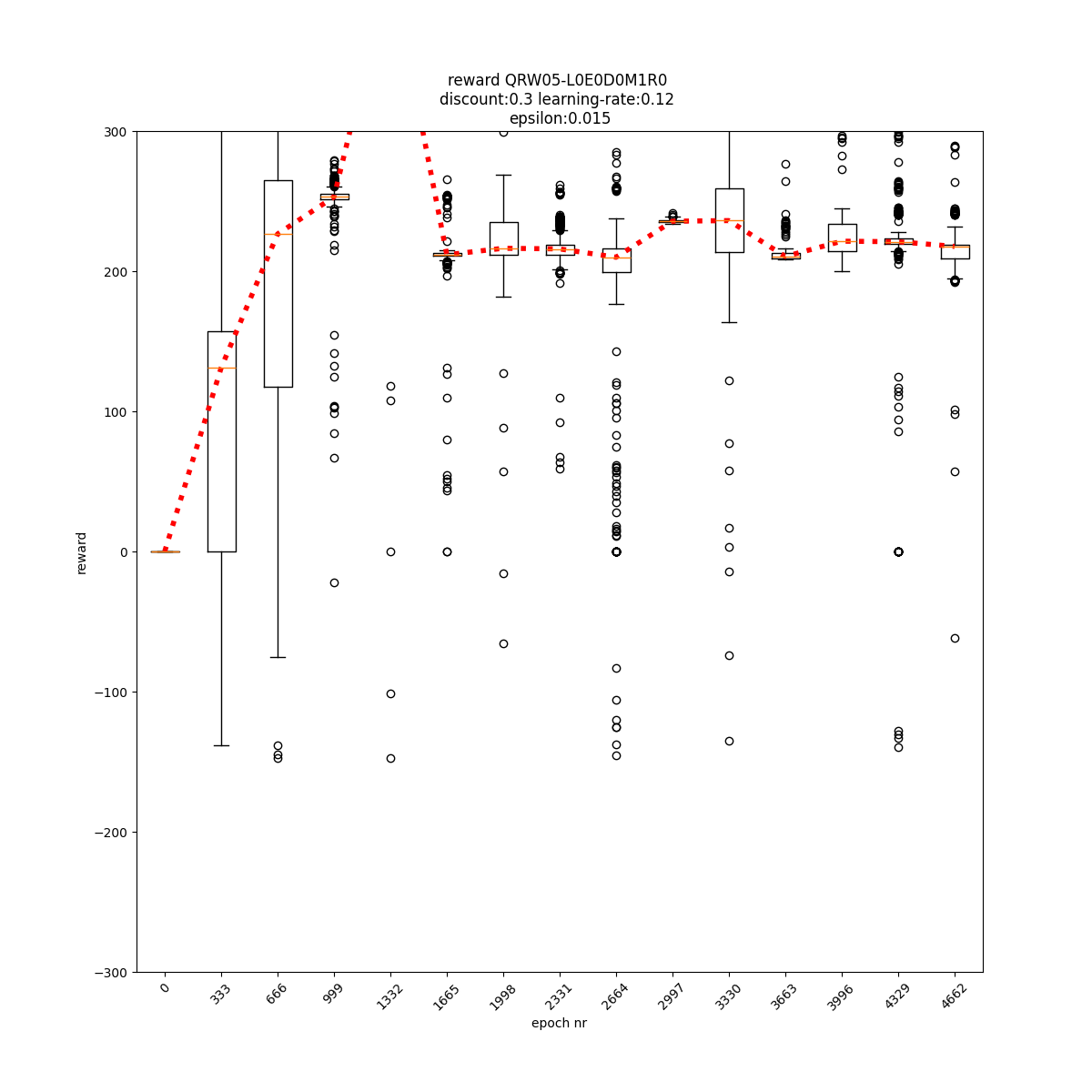

L0 E0 D0 M1 R0

q-values
video 0 video 1 video 2 video 3
video 4 video 5 video 6 video 7
video 8 video 9 video 10

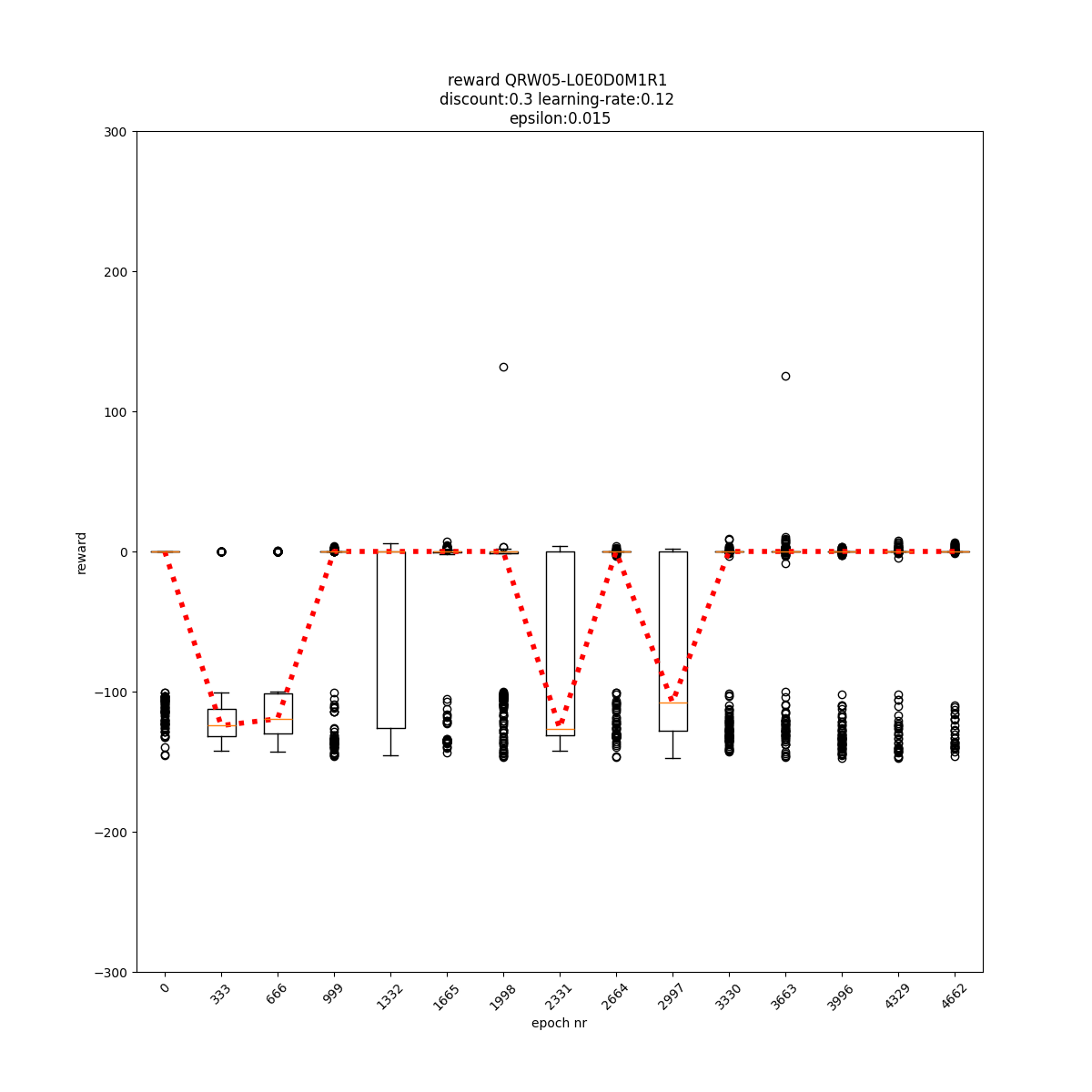

L0 E0 D0 M1 R1

q-values
video 0 video 1 video 2 video 3
video 4 video 5 video 6 video 7
video 8 video 9 video 10

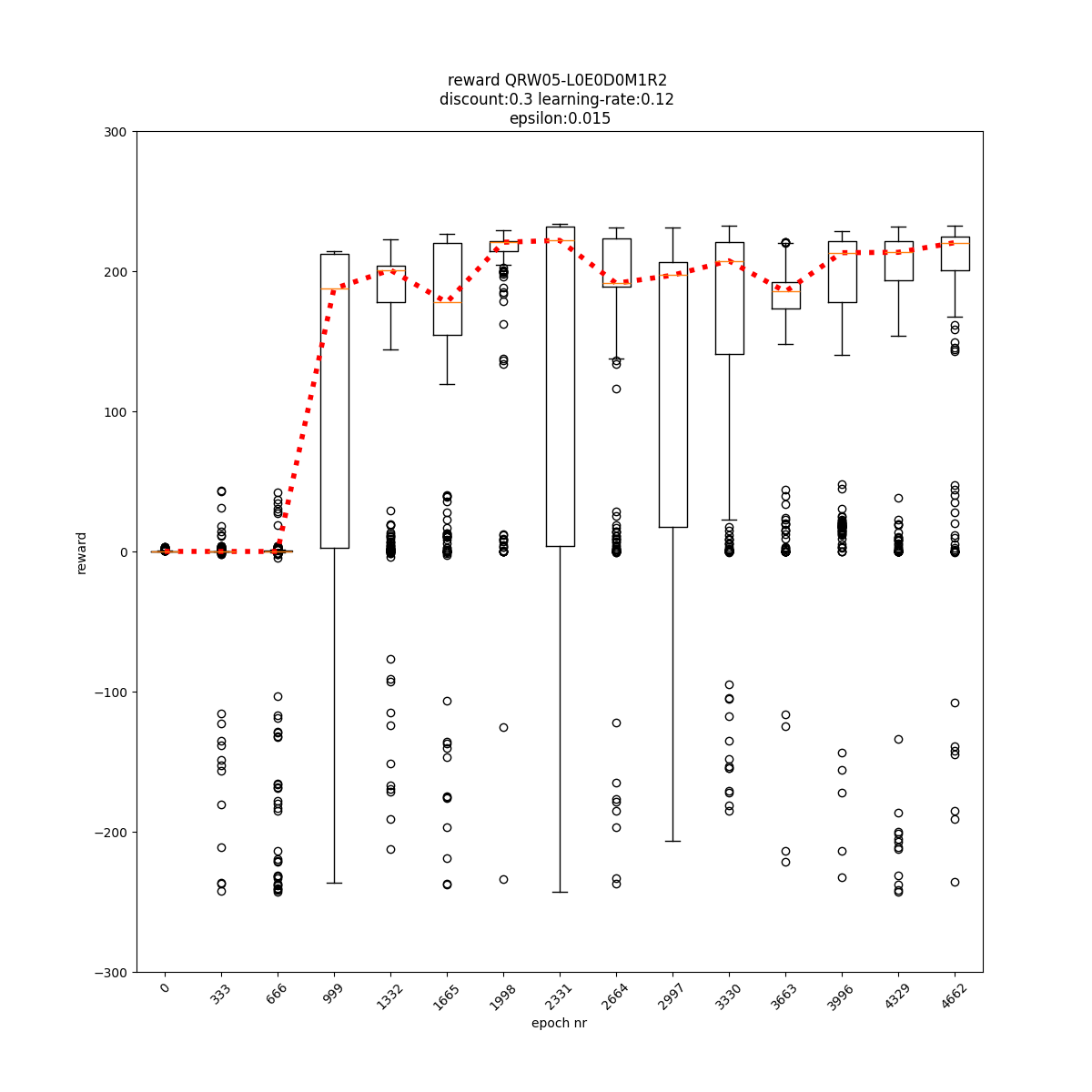

L0 E0 D0 M1 R2

q-values
video 0 video 1 video 2 video 3
video 4 video 5 video 6 video 7
video 8 video 9 video 10

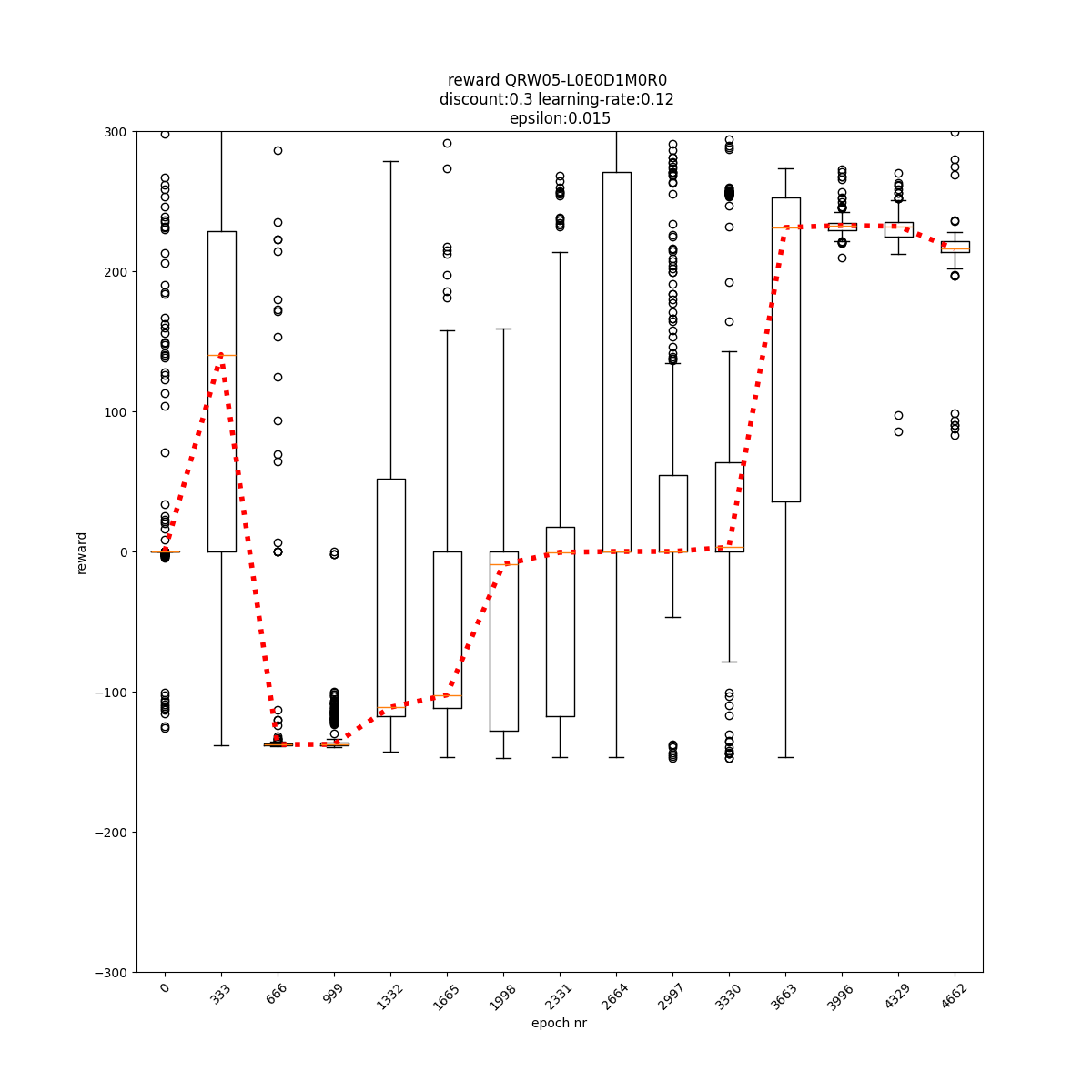

L0 E0 D1 M0 R0

q-values
video 0 video 1 video 2 video 3
video 4 video 5 video 6 video 7
video 8 video 9 video 10

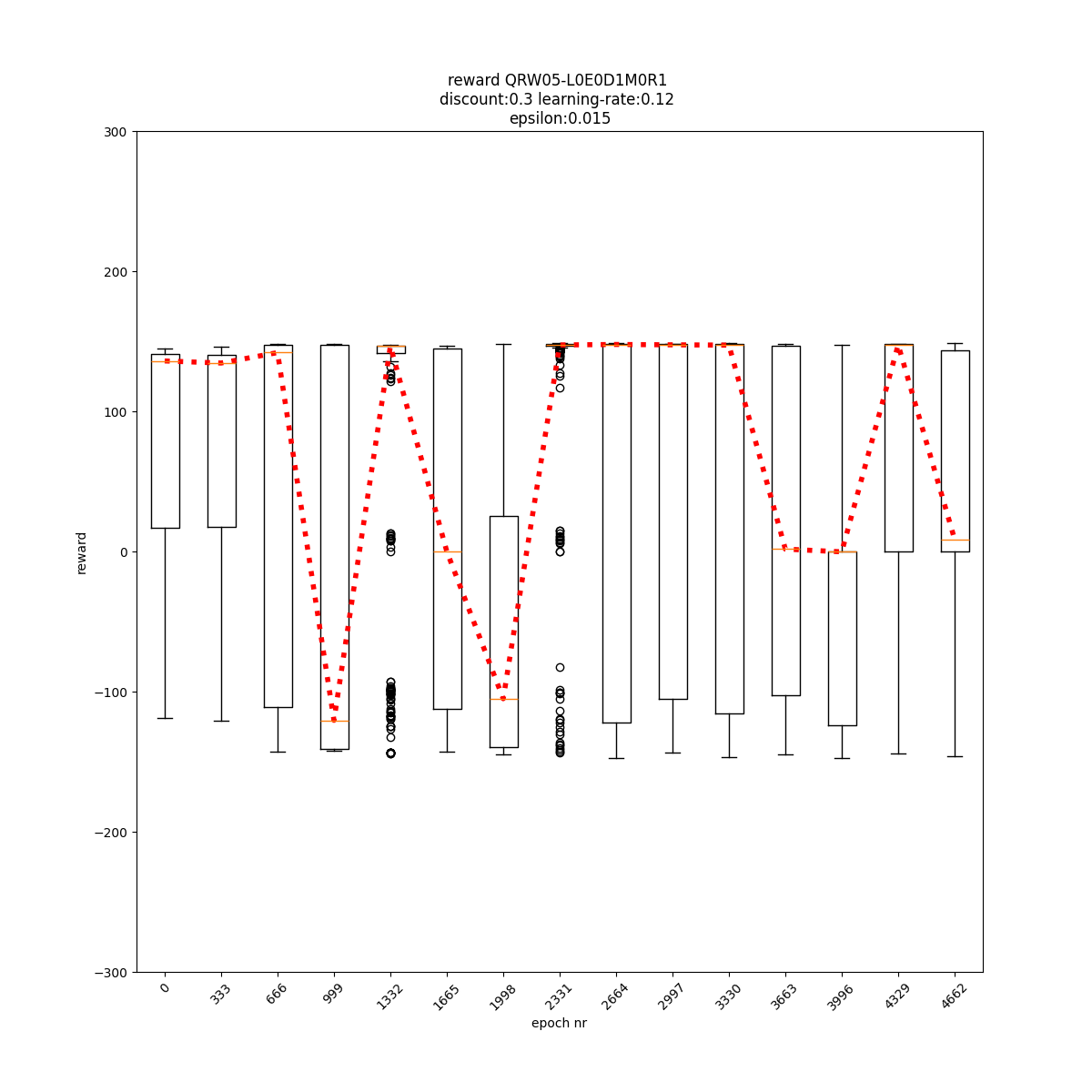

L0 E0 D1 M0 R1

q-values
video 0 video 1 video 2 video 3
video 4 video 5 video 6 video 7
video 8 video 9 video 10

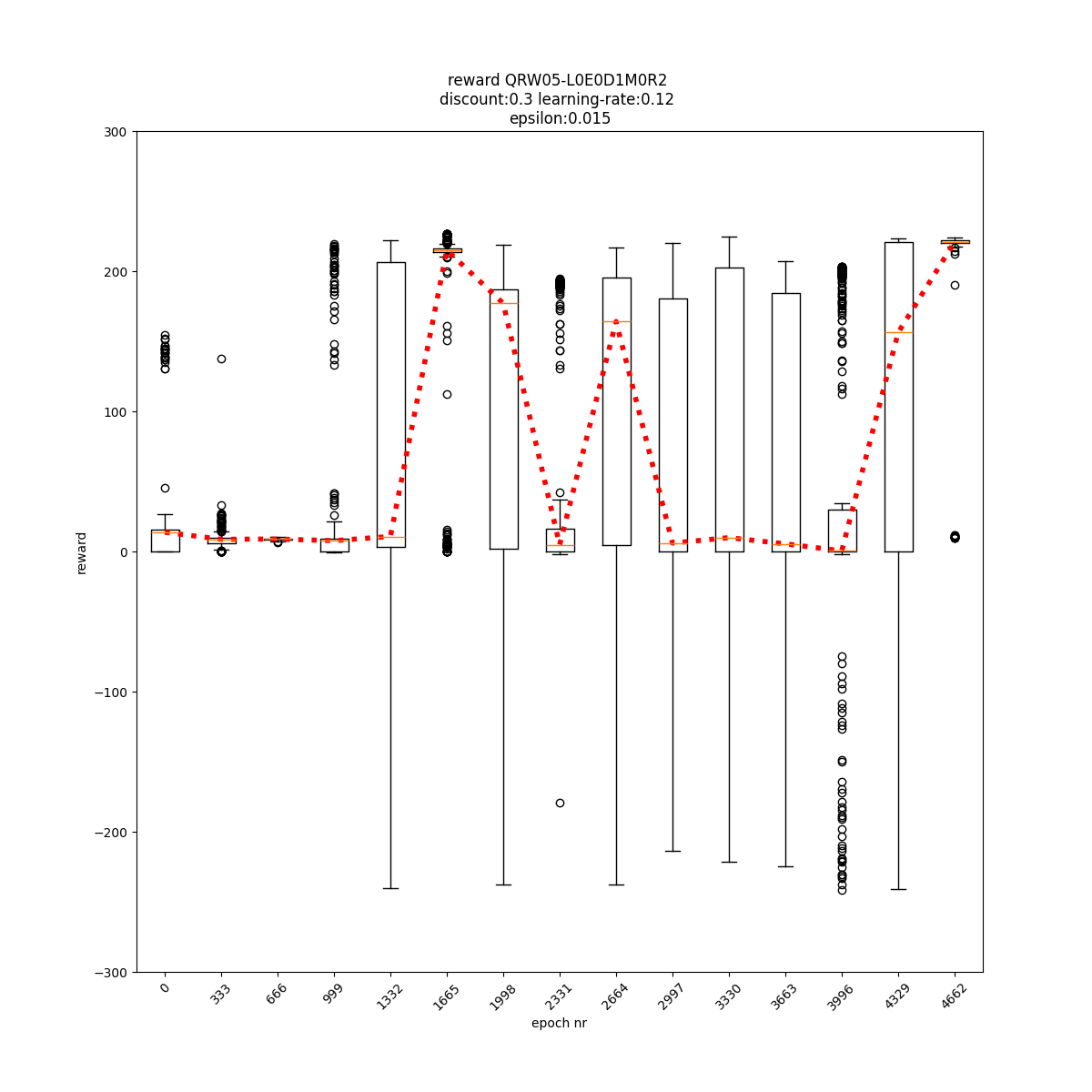

L0 E0 D1 M0 R2

q-values
video 0 video 1 video 2 video 3
video 4 video 5 video 6 video 7
video 8 video 9 video 10

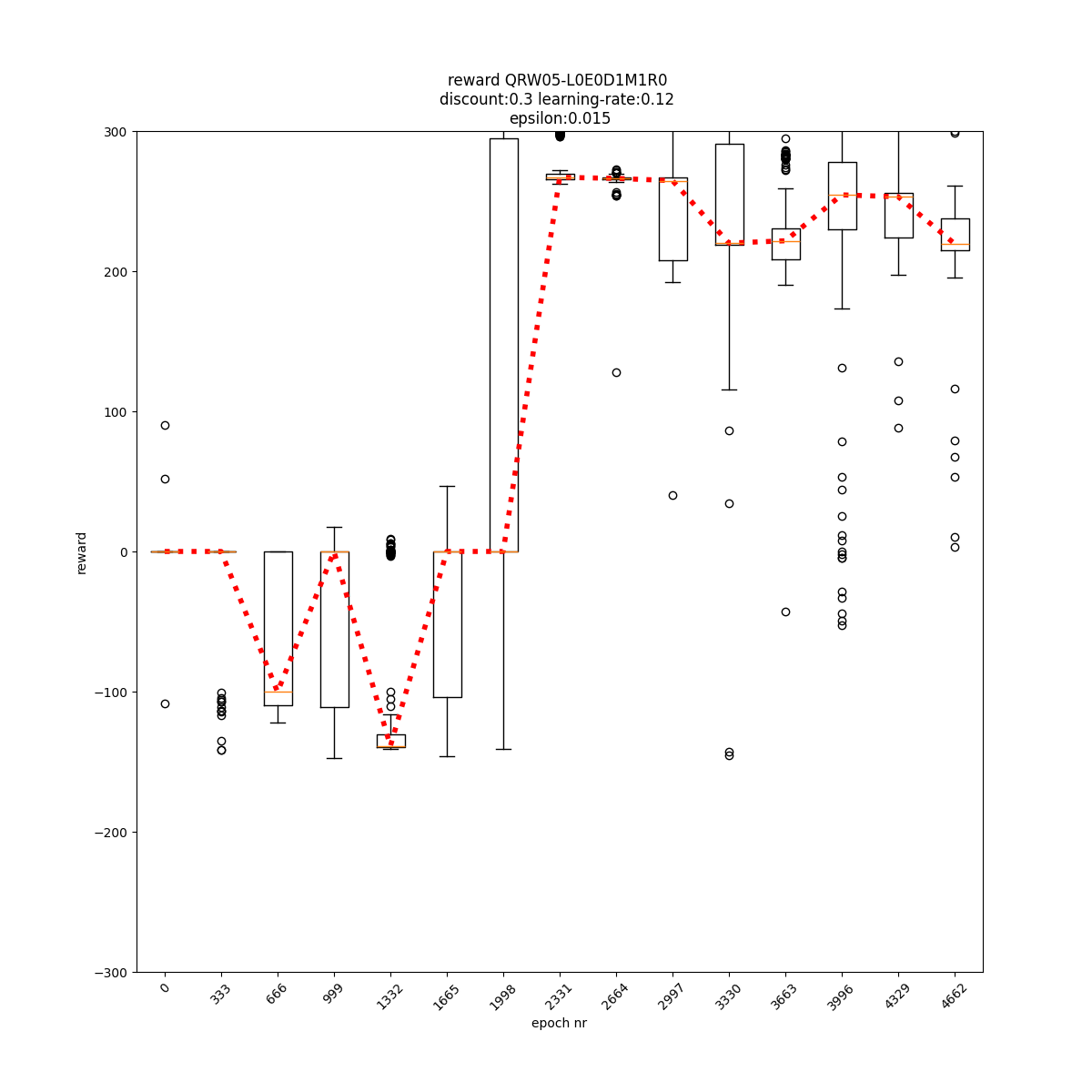

L0 E0 D1 M1 R0

q-values
video 0 video 1 video 2 video 3
video 4 video 5 video 6 video 7
video 8 video 9 video 10

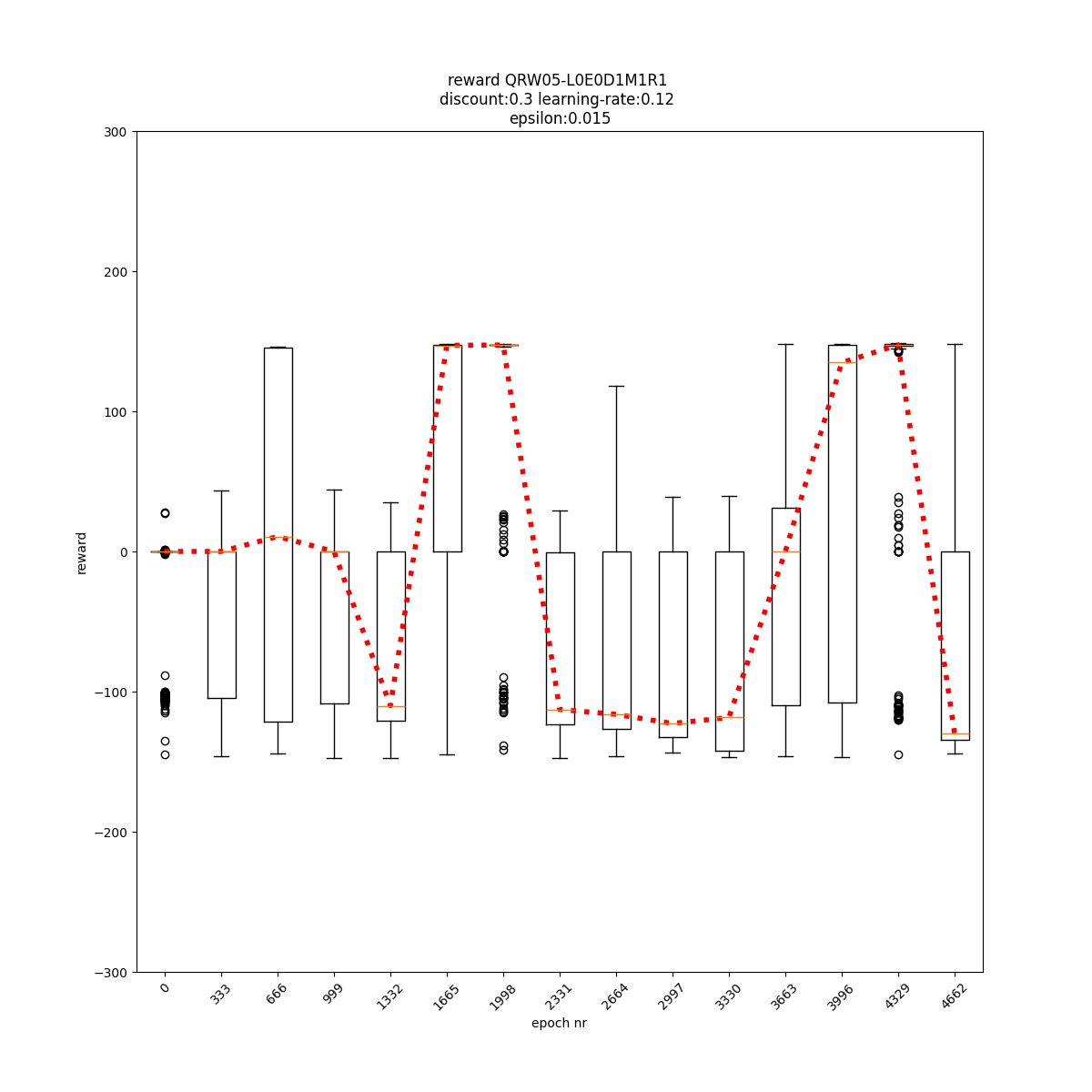

L0 E0 D1 M1 R1

q-values
video 0 video 1 video 2 video 3
video 4 video 5 video 6 video 7
video 8 video 9 video 10

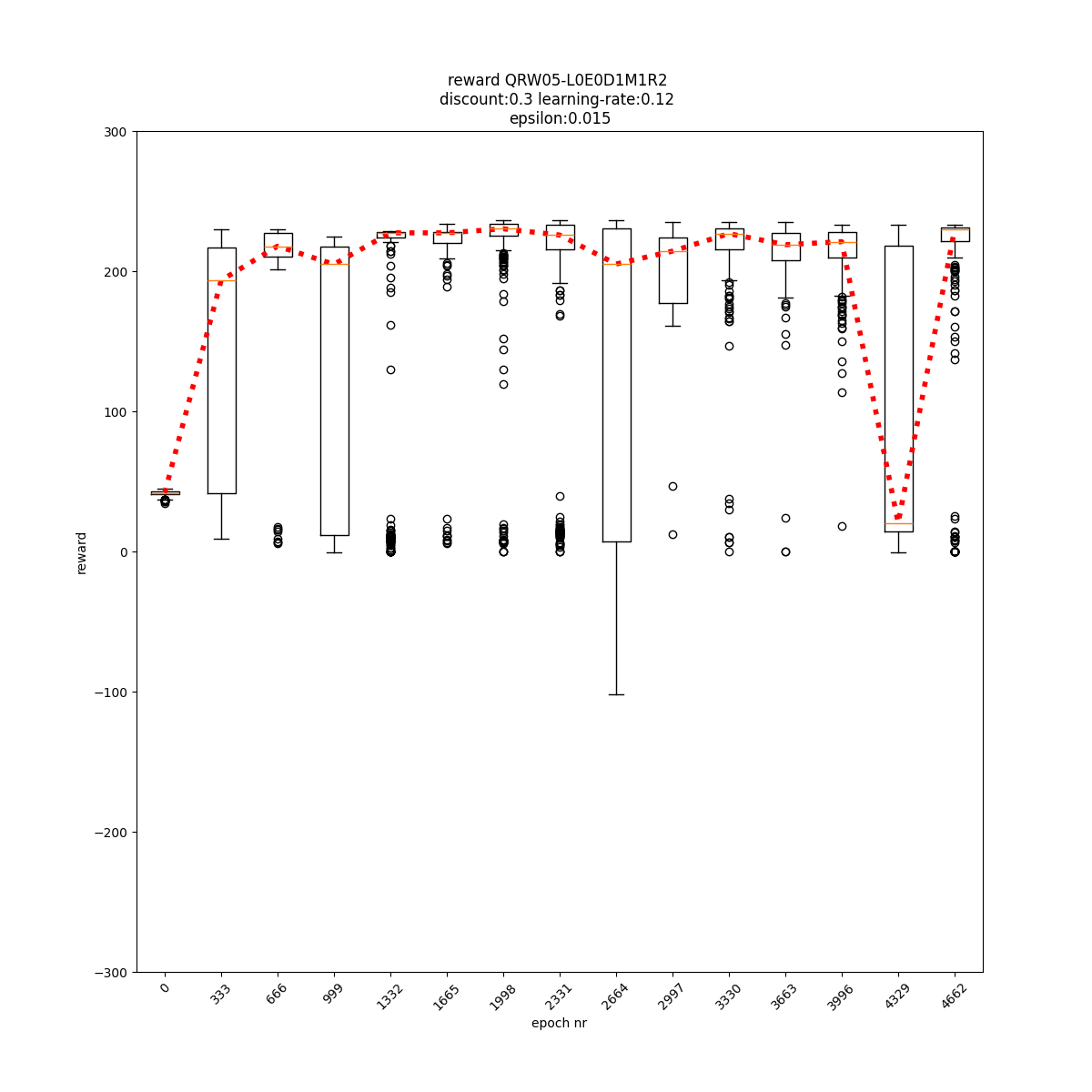

L0 E0 D1 M1 R2

q-values
video 0 video 1 video 2 video 3
video 4 video 5 video 6 video 7
video 8 video 9 video 10

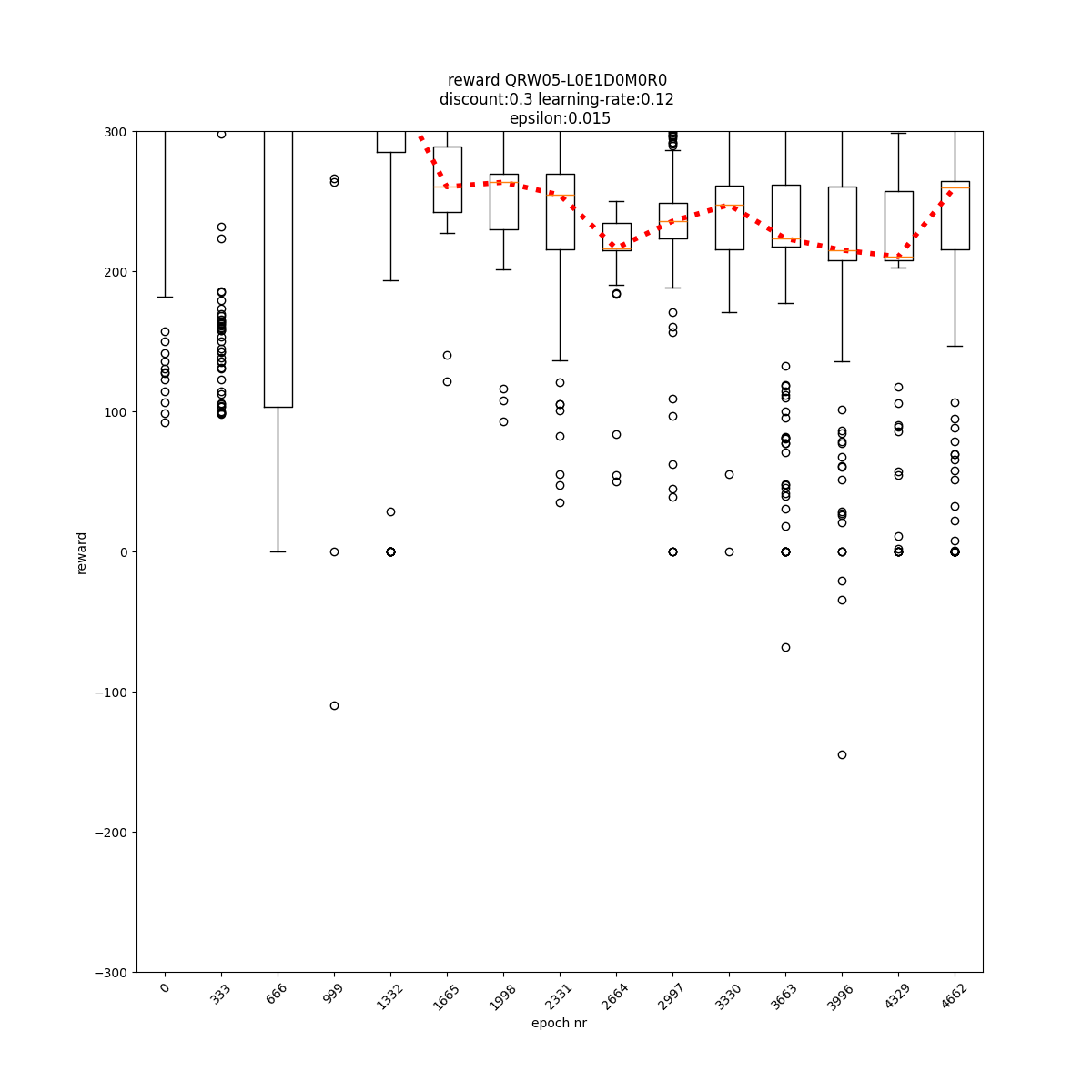

L0 E1 D0 M0 R0

q-values
video 0 video 1 video 2 video 3
video 4 video 5 video 6 video 7
video 8 video 9 video 10

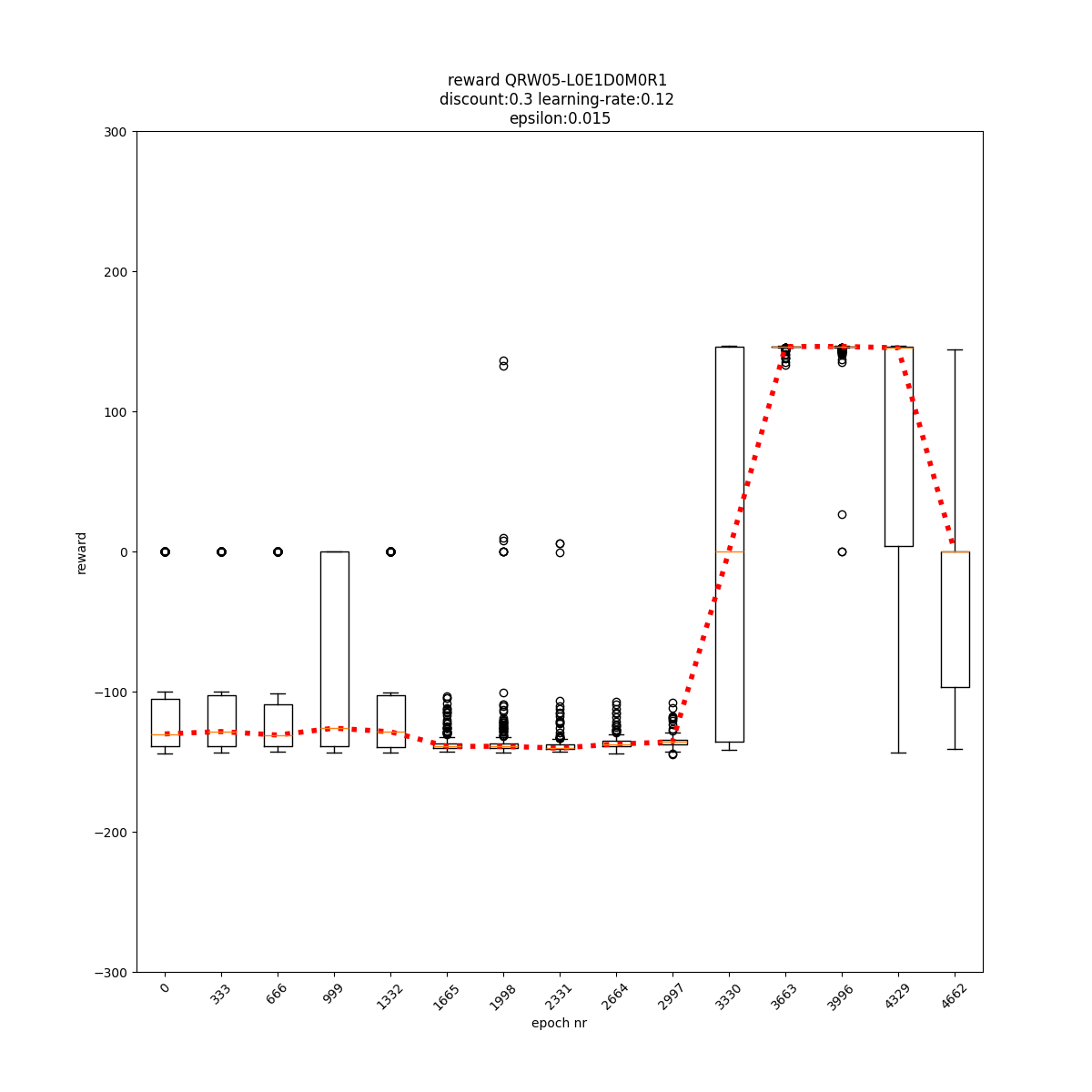

L0 E1 D0 M0 R1

q-values
video 0 video 1 video 2 video 3
video 4 video 5 video 6 video 7
video 8 video 9 video 10

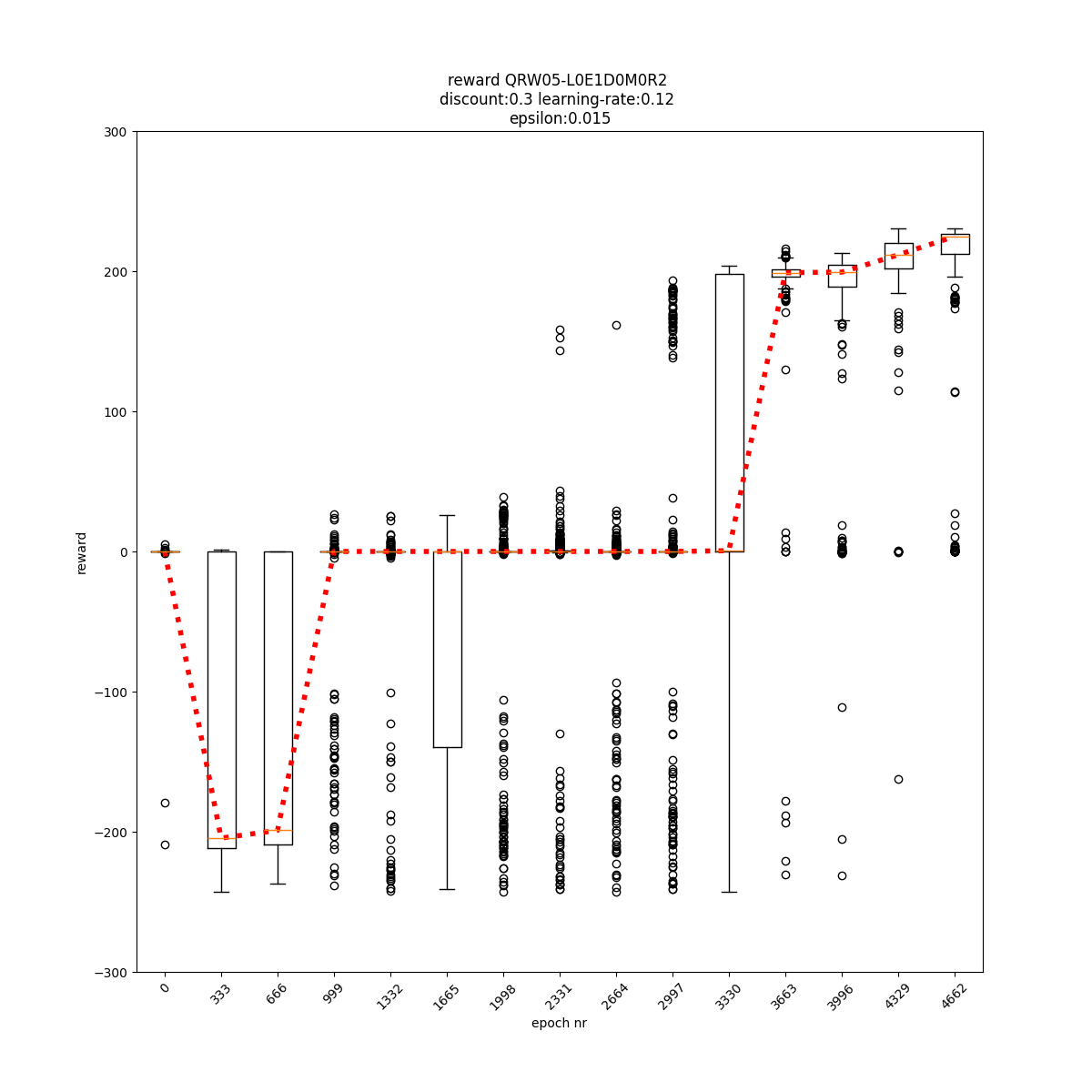

L0 E1 D0 M0 R2

q-values
video 0 video 1 video 2 video 3
video 4 video 5 video 6 video 7
video 8 video 9 video 10

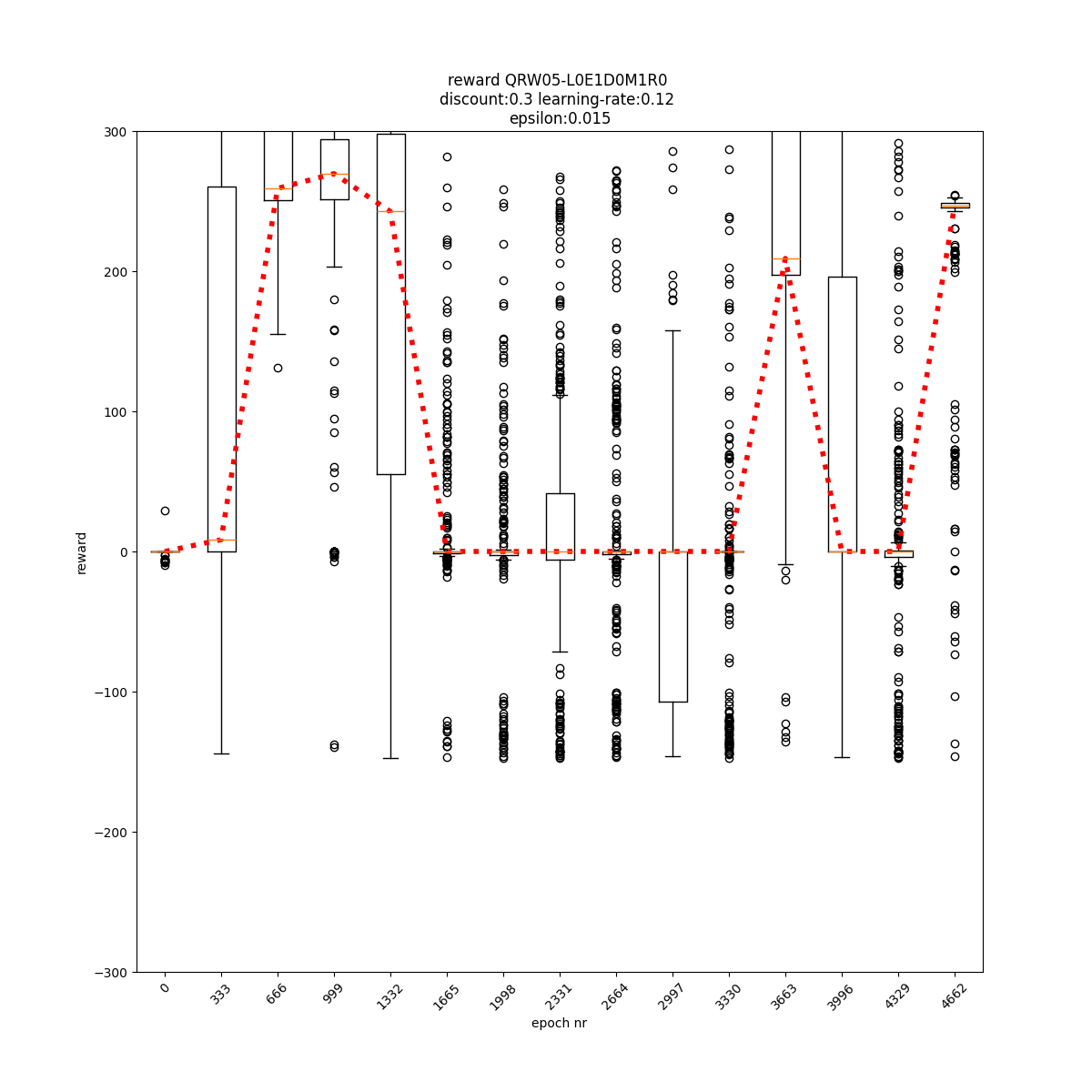

L0 E1 D0 M1 R0

q-values
video 0 video 1 video 2 video 3
video 4 video 5 video 6 video 7
video 8 video 9 video 10

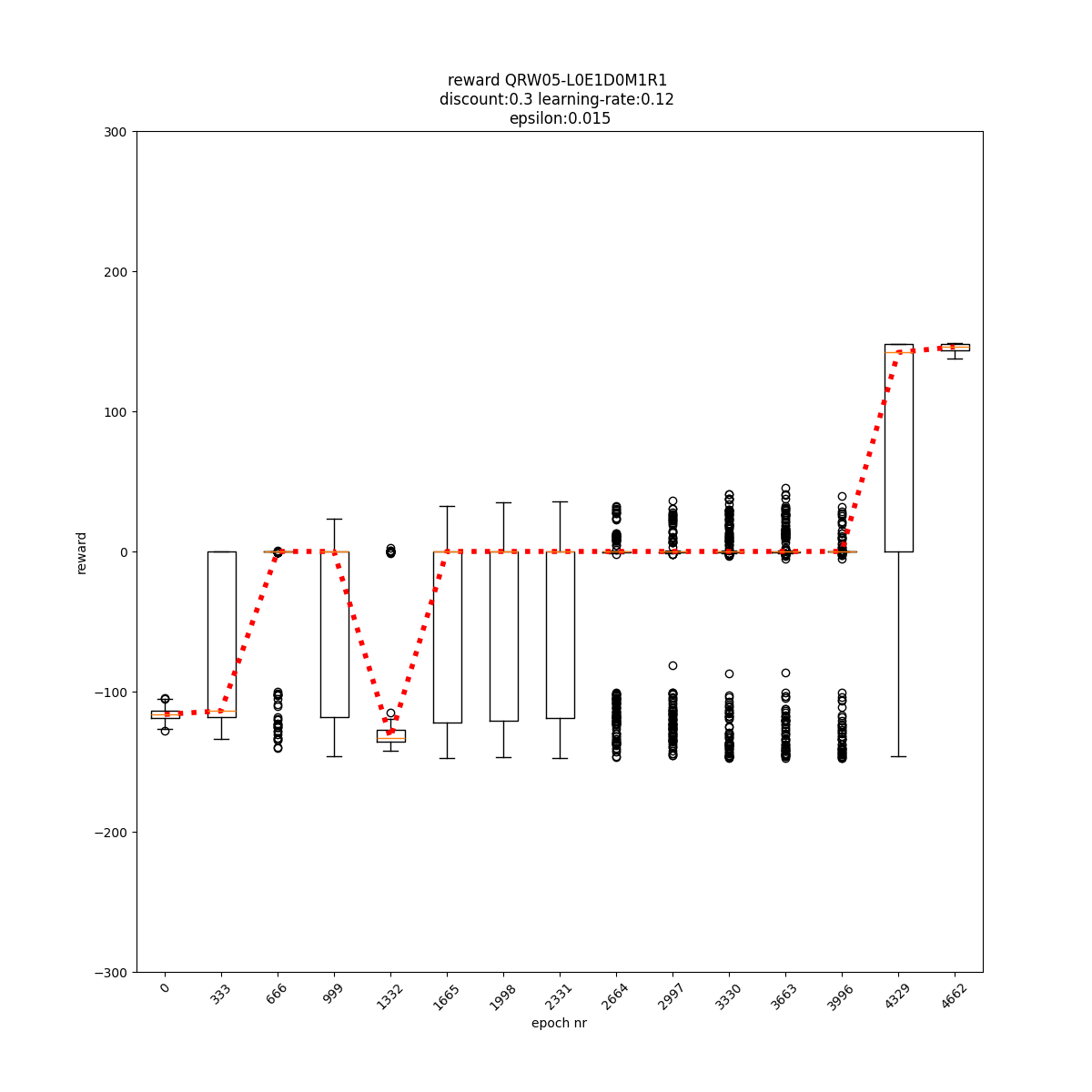

L0 E1 D0 M1 R1

q-values
video 0 video 1 video 2 video 3
video 4 video 5 video 6 video 7
video 8 video 9 video 10

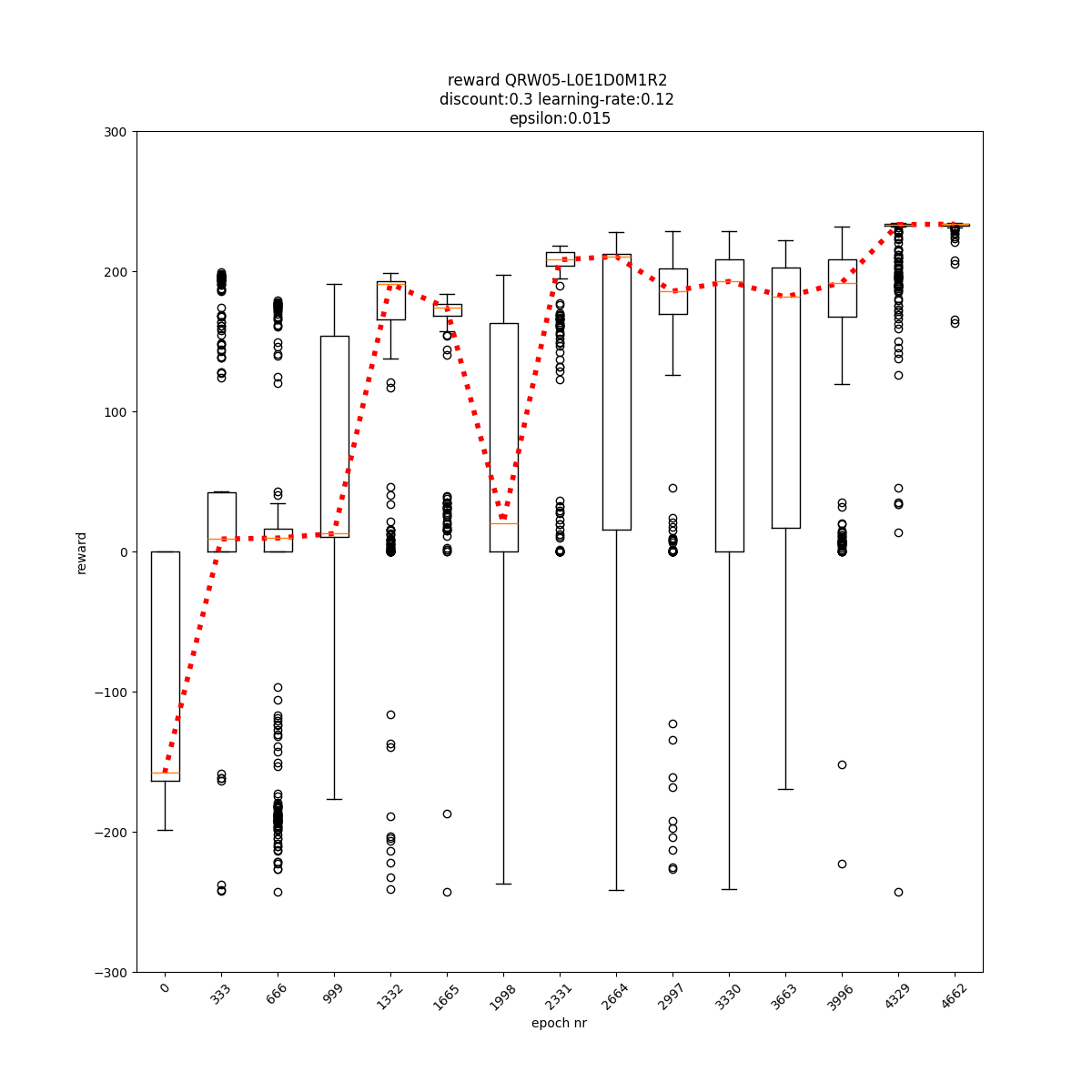

L0 E1 D0 M1 R2

q-values
video 0 video 1 video 2 video 3
video 4 video 5 video 6 video 7
video 8 video 9 video 10

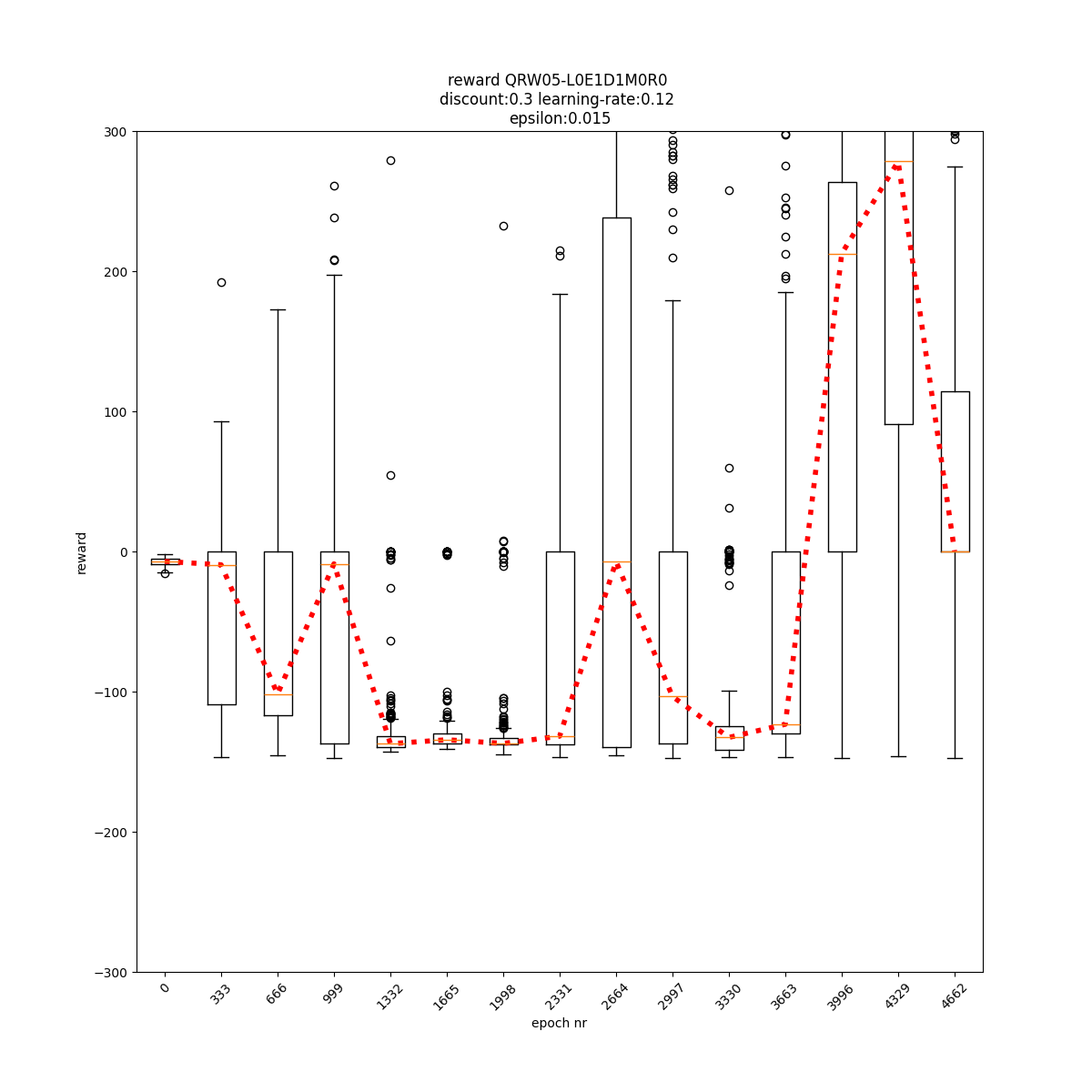

L0 E1 D1 M0 R0

q-values
video 0 video 1 video 2 video 3
video 4 video 5 video 6 video 7
video 8 video 9 video 10

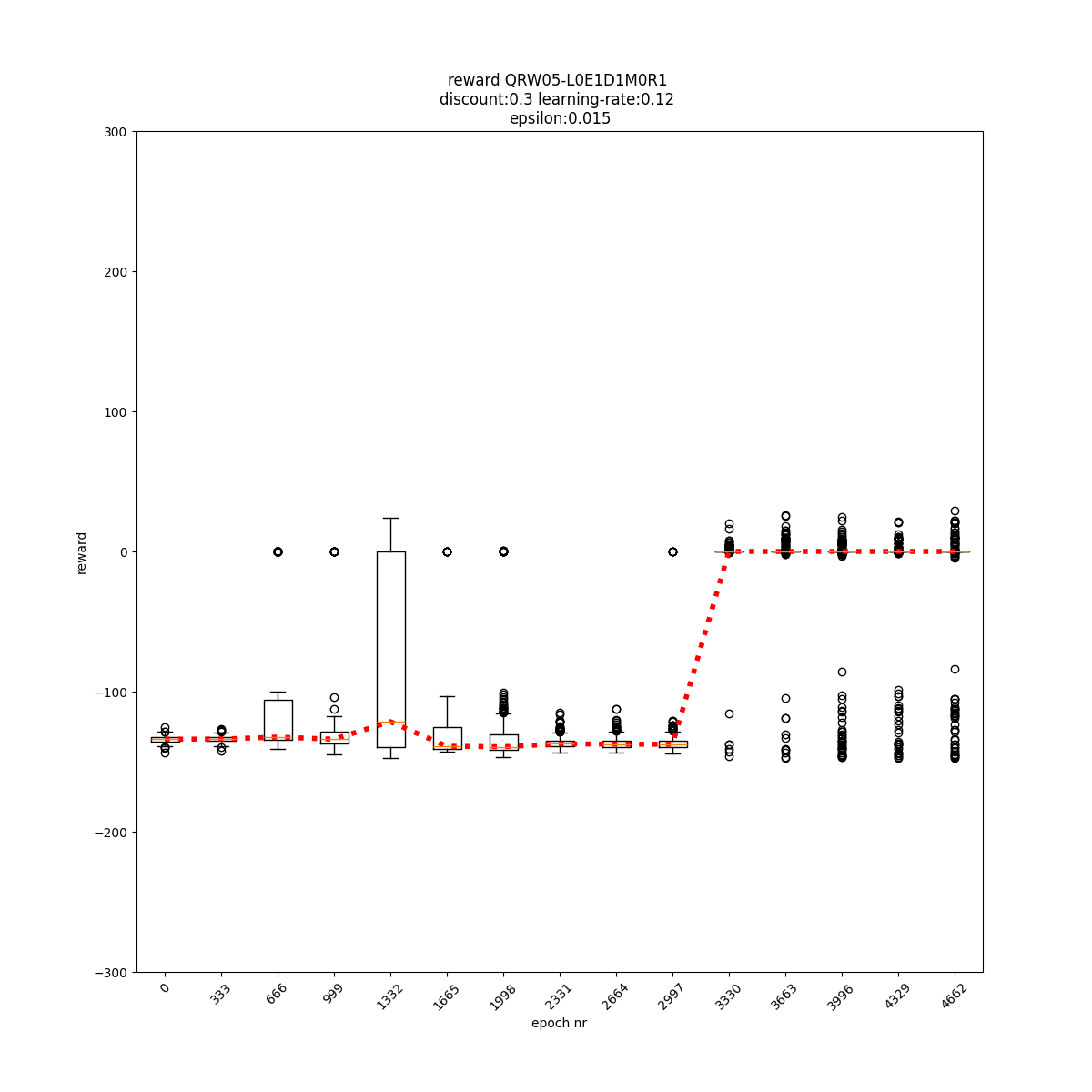

L0 E1 D1 M0 R1

q-values
video 0 video 1 video 2 video 3
video 4 video 5 video 6 video 7
video 8 video 9 video 10

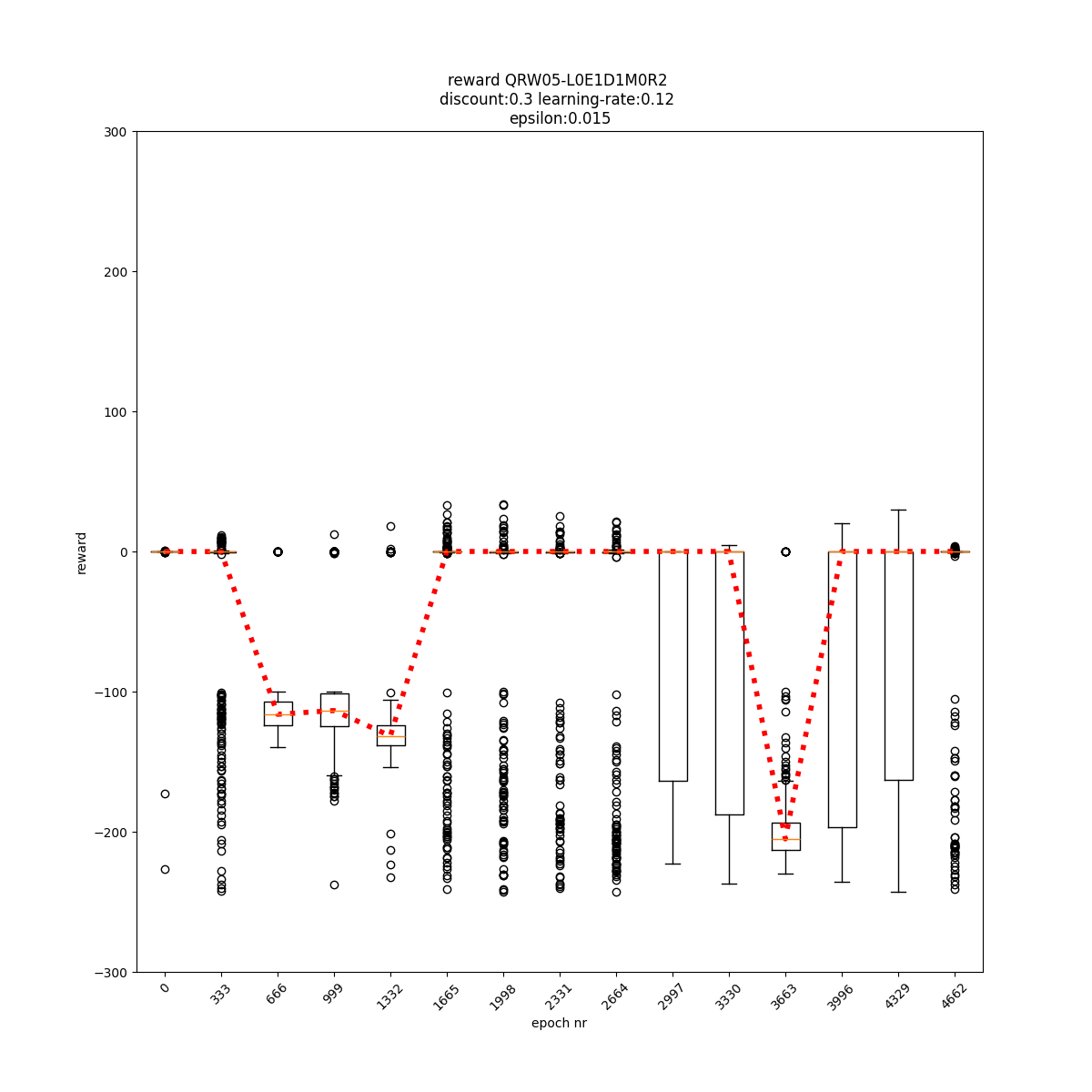

L0 E1 D1 M0 R2

q-values
video 0 video 1 video 2 video 3
video 4 video 5 video 6 video 7
video 8 video 9 video 10

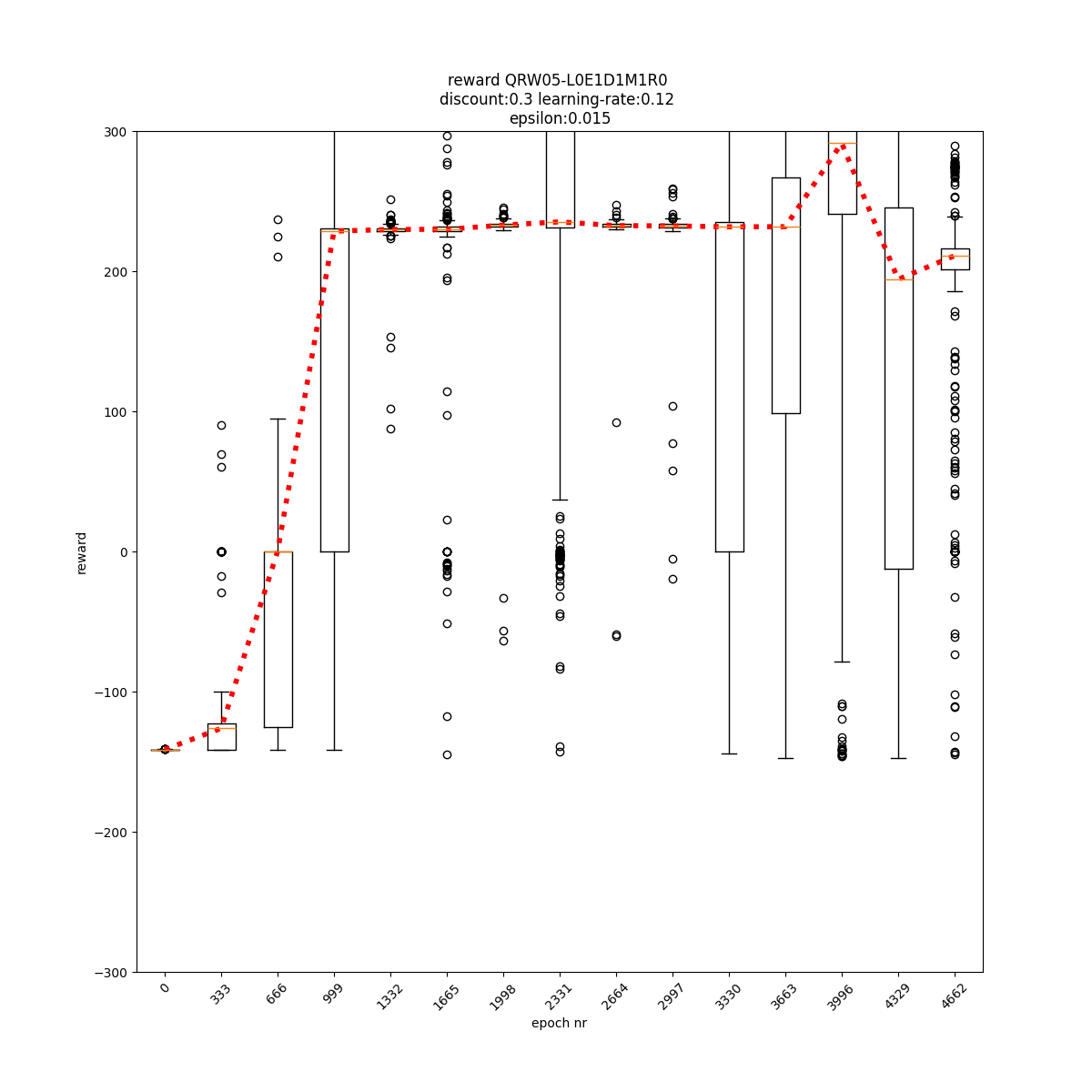

L0 E1 D1 M1 R0

q-values
video 0 video 1 video 2 video 3
video 4 video 5 video 6 video 7
video 8 video 9 video 10

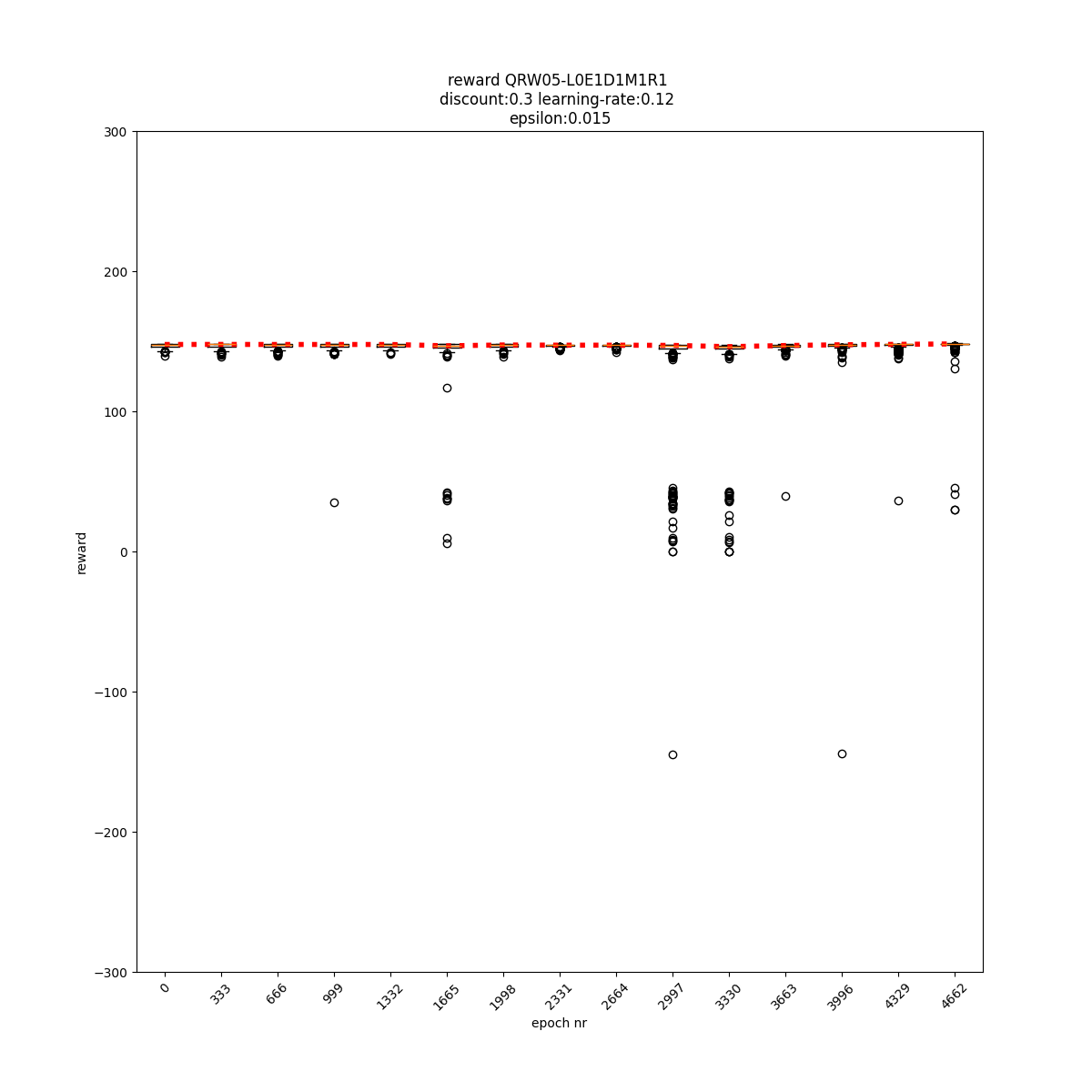

L0 E1 D1 M1 R1

q-values
video 0 video 1 video 2 video 3
video 4 video 5 video 6 video 7
video 8 video 9 video 10

L0 E1 D1 M1 R2

q-values
video 0 video 1 video 2 video 3
video 4 video 5 video 6 video 7
video 8 video 9 video 10

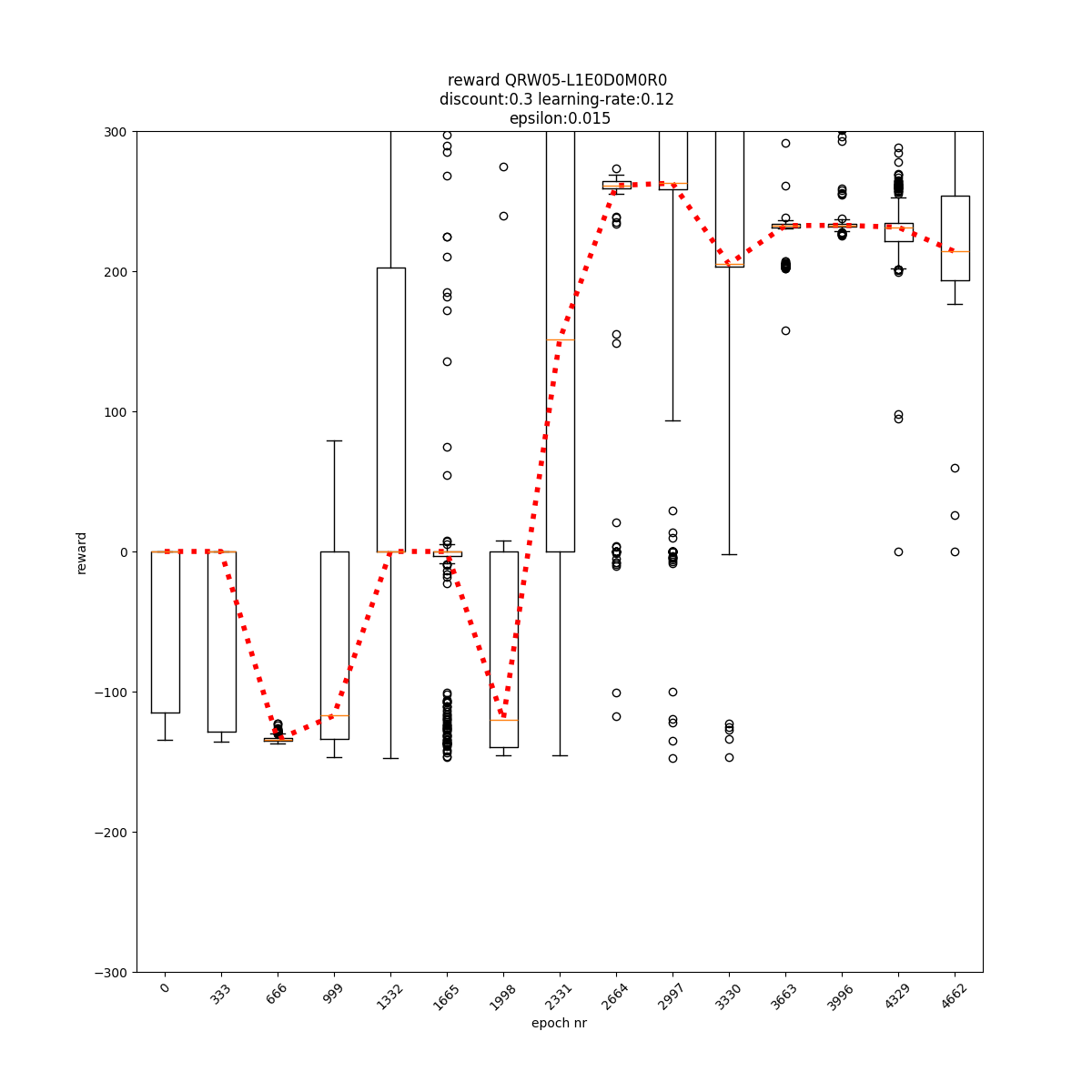

L1 E0 D0 M0 R0

q-values
video 0 video 1 video 2 video 3
video 4 video 5 video 6 video 7
video 8 video 9 video 10

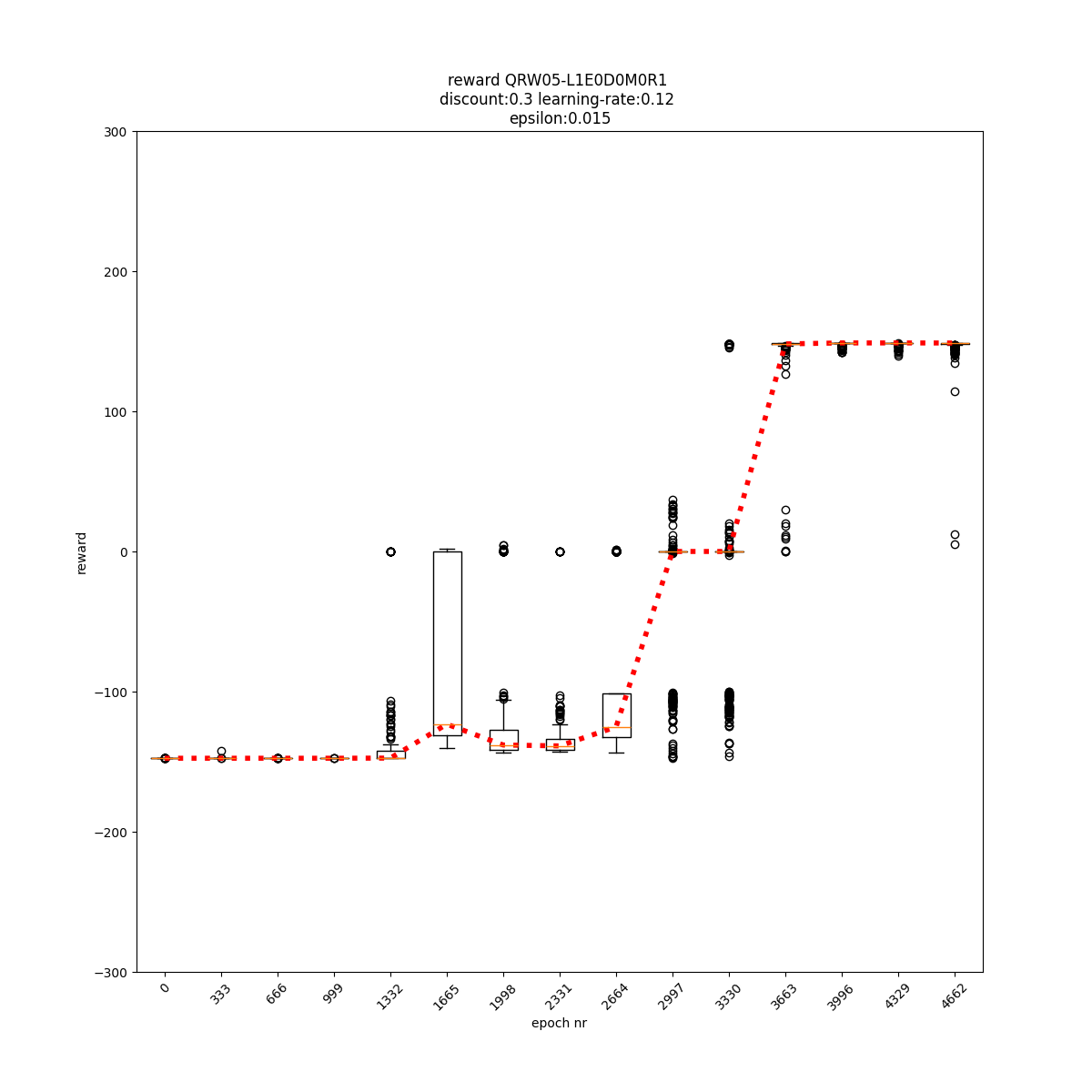

L1 E0 D0 M0 R1

q-values
video 0 video 1 video 2 video 3
video 4 video 5 video 6 video 7
video 8 video 9 video 10

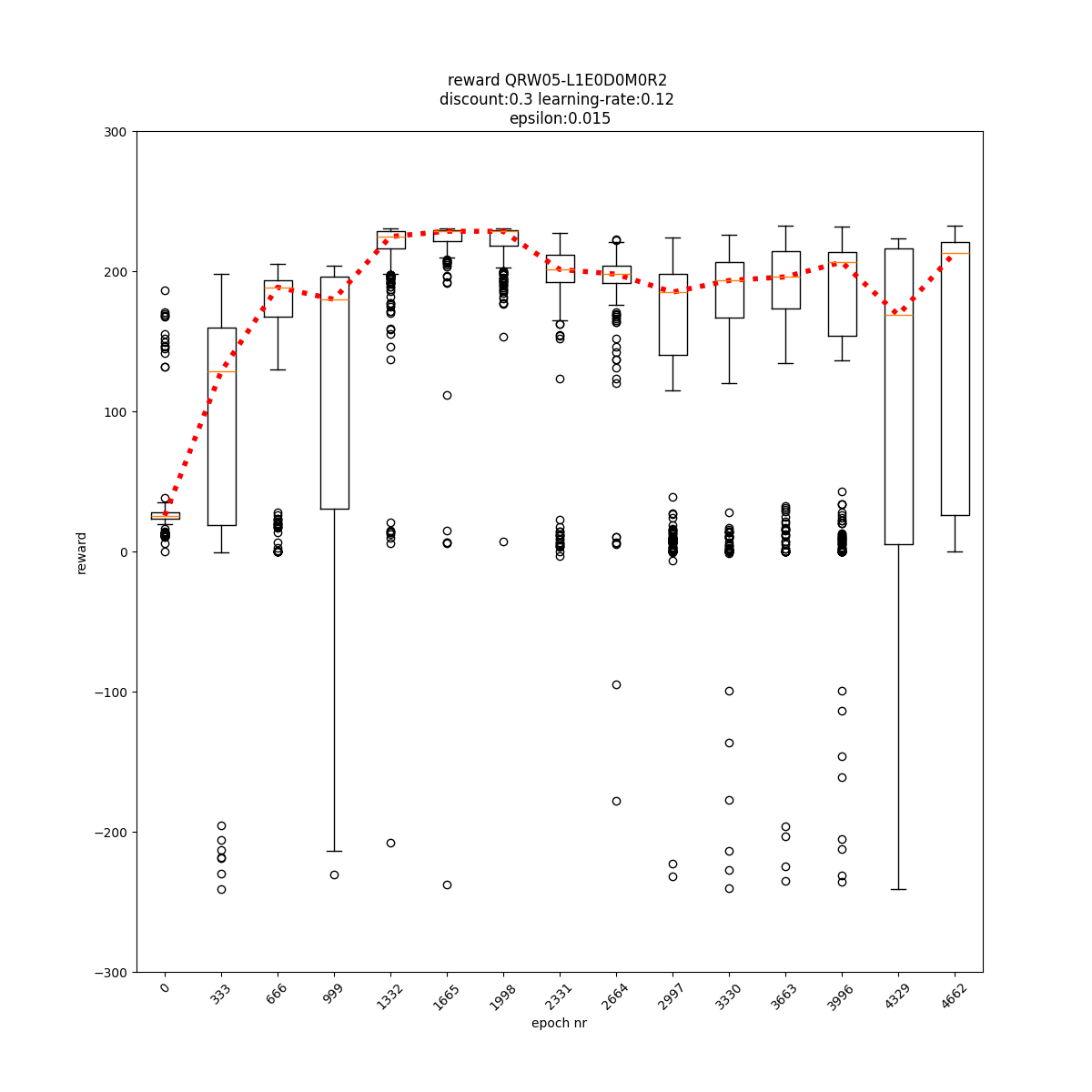

L1 E0 D0 M0 R2

q-values
video 0 video 1 video 2 video 3
video 4 video 5 video 6 video 7
video 8 video 9 video 10

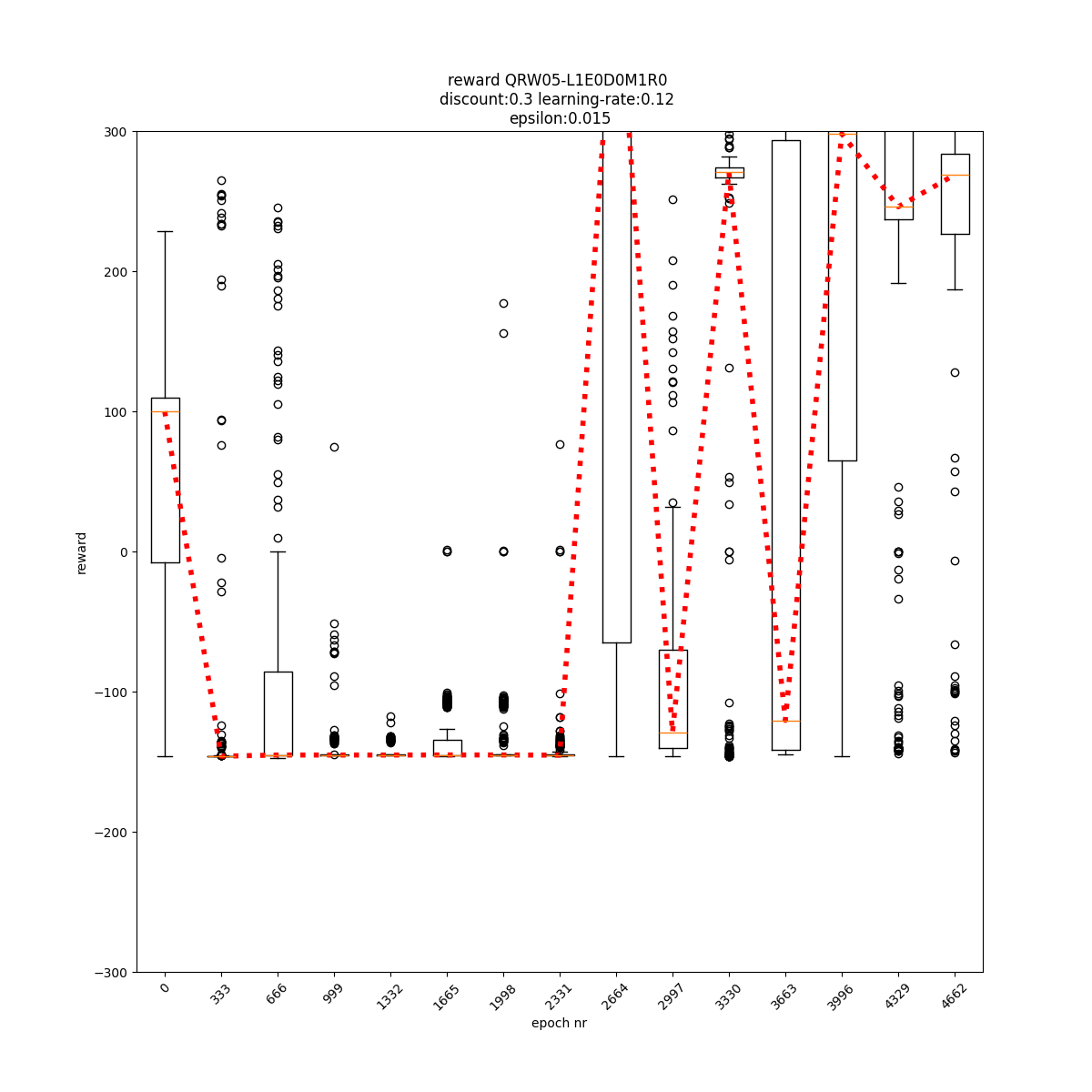

L1 E0 D0 M1 R0

q-values
video 0 video 1 video 2 video 3
video 4 video 5 video 6 video 7
video 8 video 9 video 10

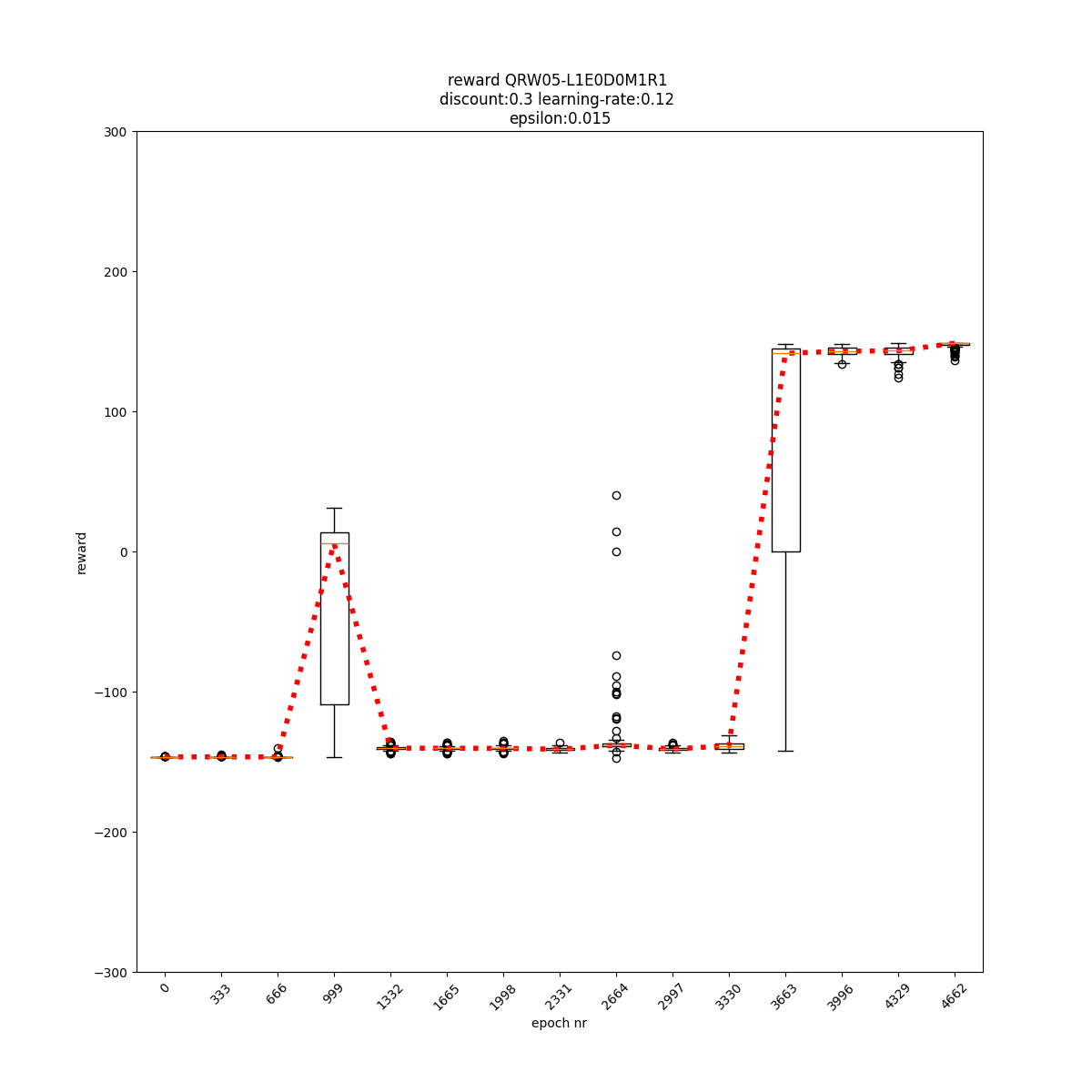

L1 E0 D0 M1 R1

q-values
video 0 video 1 video 2 video 3
video 4 video 5 video 6 video 7
video 8 video 9 video 10

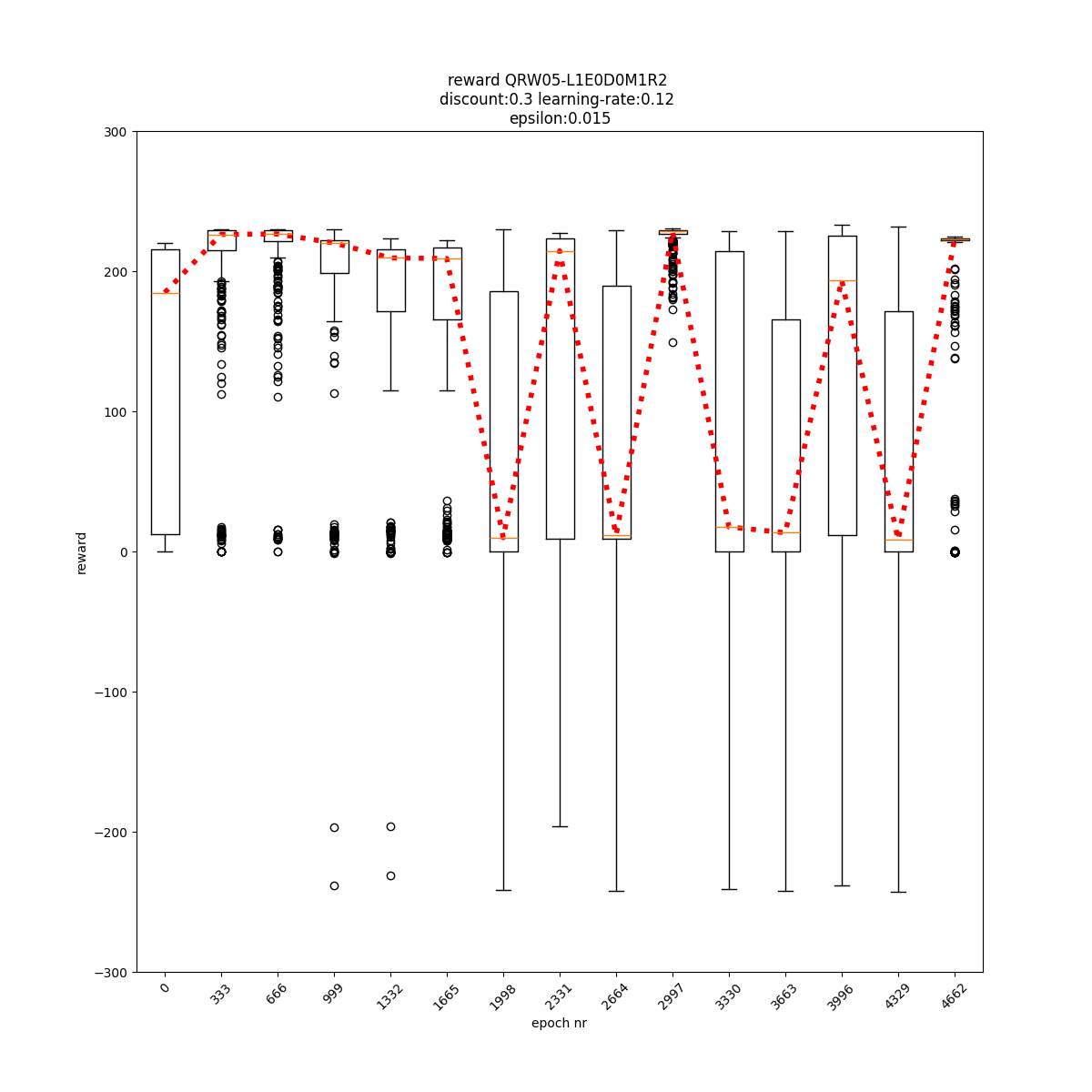

L1 E0 D0 M1 R2

q-values
video 0 video 1 video 2 video 3
video 4 video 5 video 6 video 7
video 8 video 9 video 10

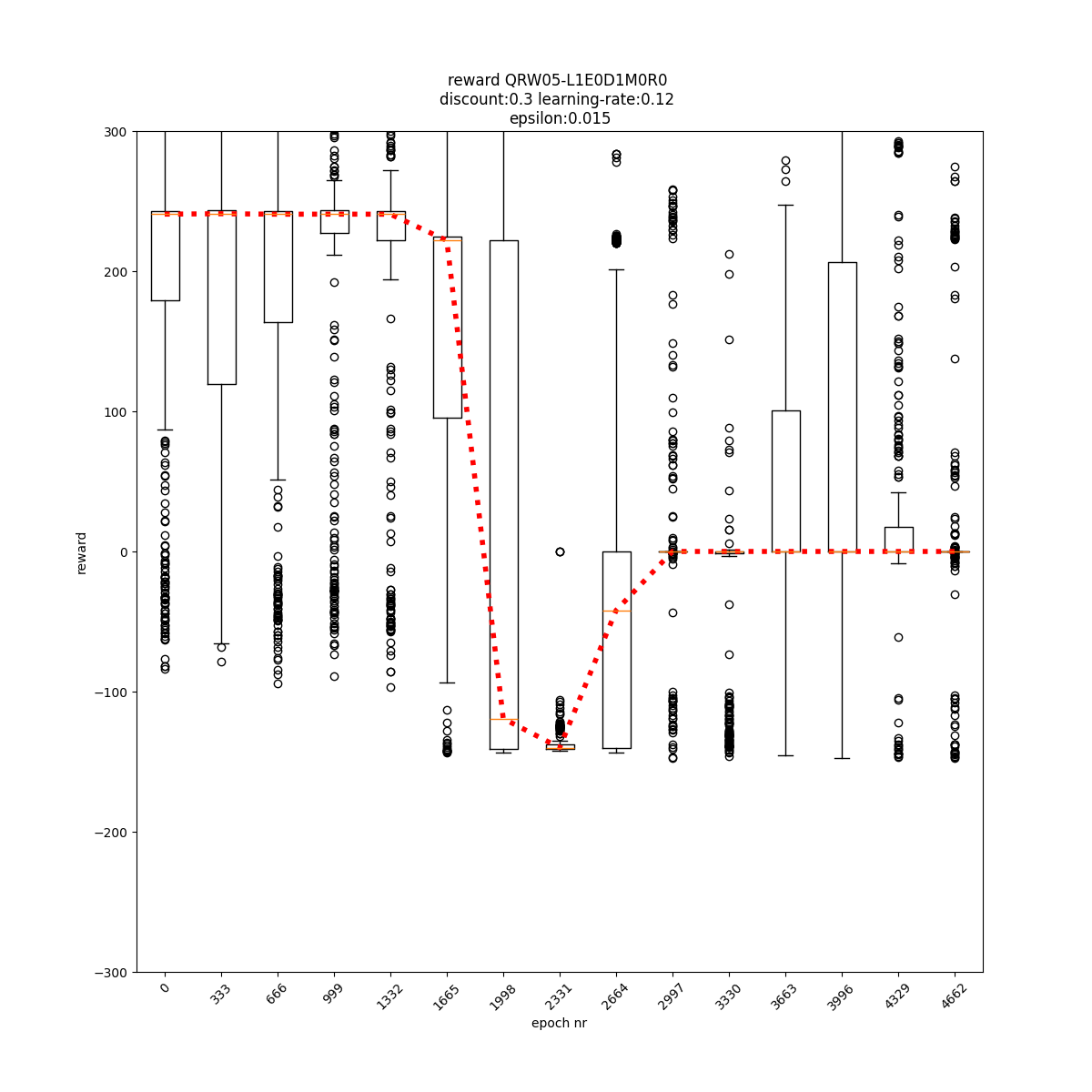

L1 E0 D1 M0 R0

q-values
video 0 video 1 video 2 video 3
video 4 video 5 video 6 video 7
video 8 video 9 video 10

L1 E0 D1 M0 R1

q-values
video 0 video 1 video 2 video 3
video 4 video 5 video 6 video 7
video 8 video 9 video 10

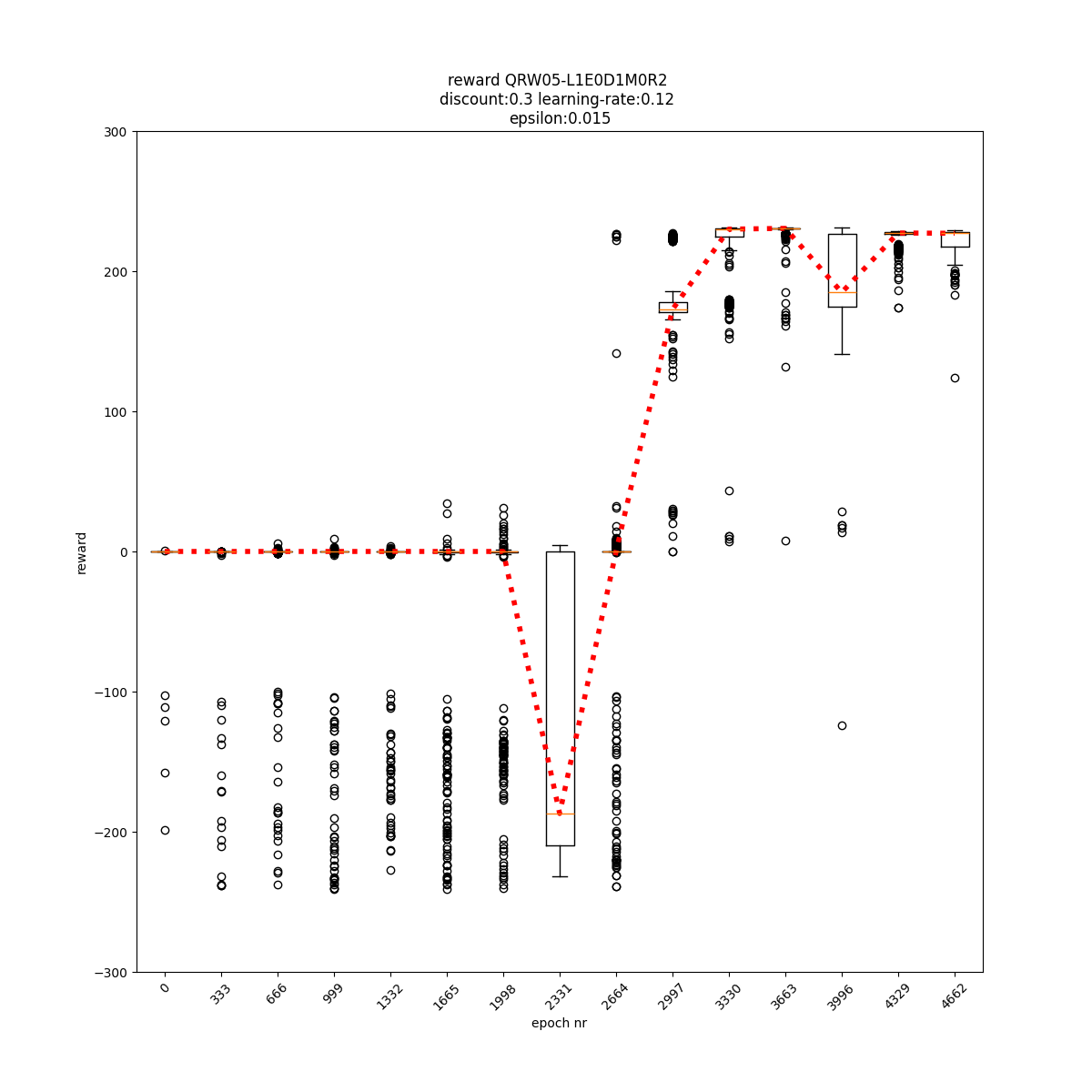

L1 E0 D1 M0 R2

q-values
video 0 video 1 video 2 video 3
video 4 video 5 video 6 video 7
video 8 video 9 video 10

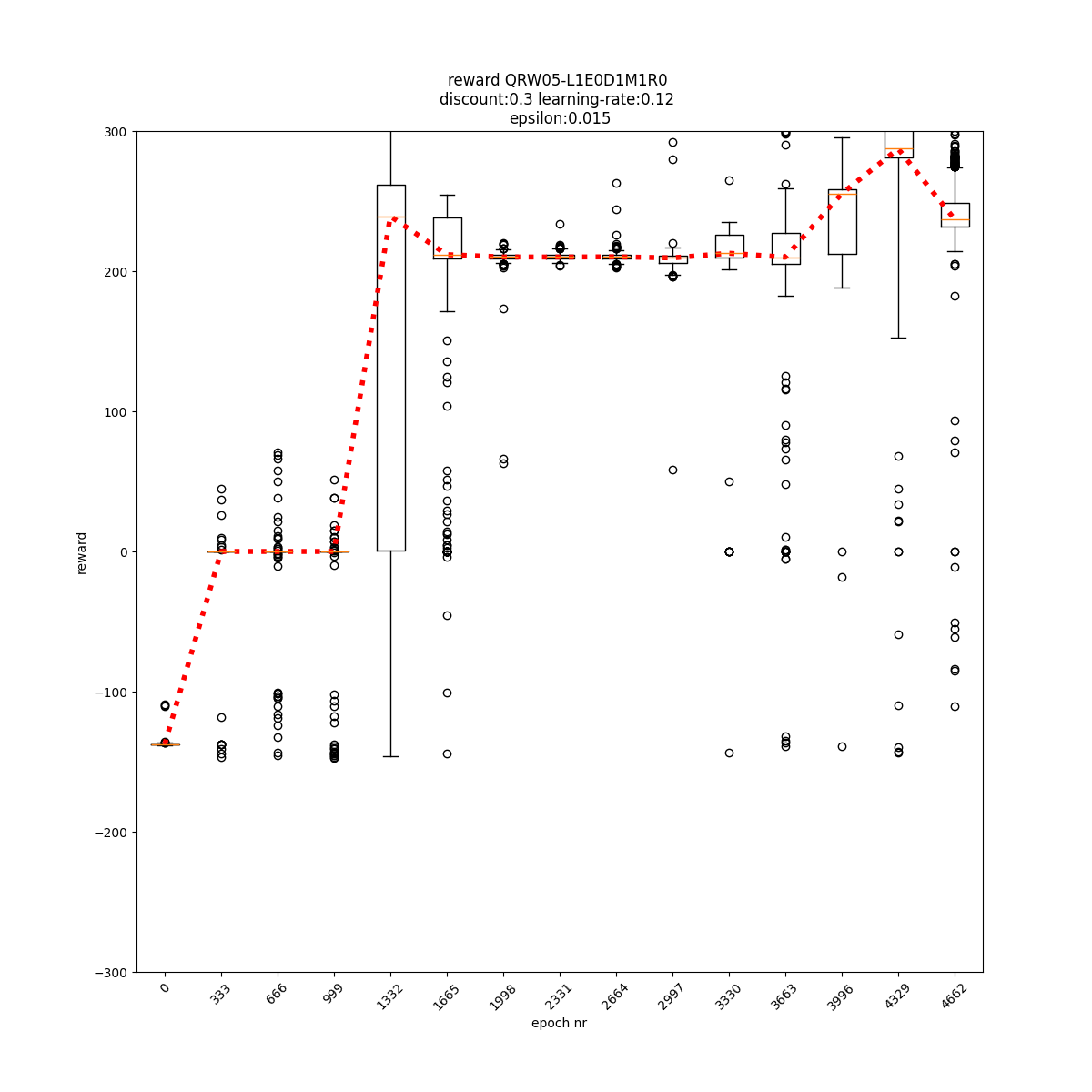

L1 E0 D1 M1 R0

q-values
video 0 video 1 video 2 video 3
video 4 video 5 video 6 video 7
video 8 video 9 video 10

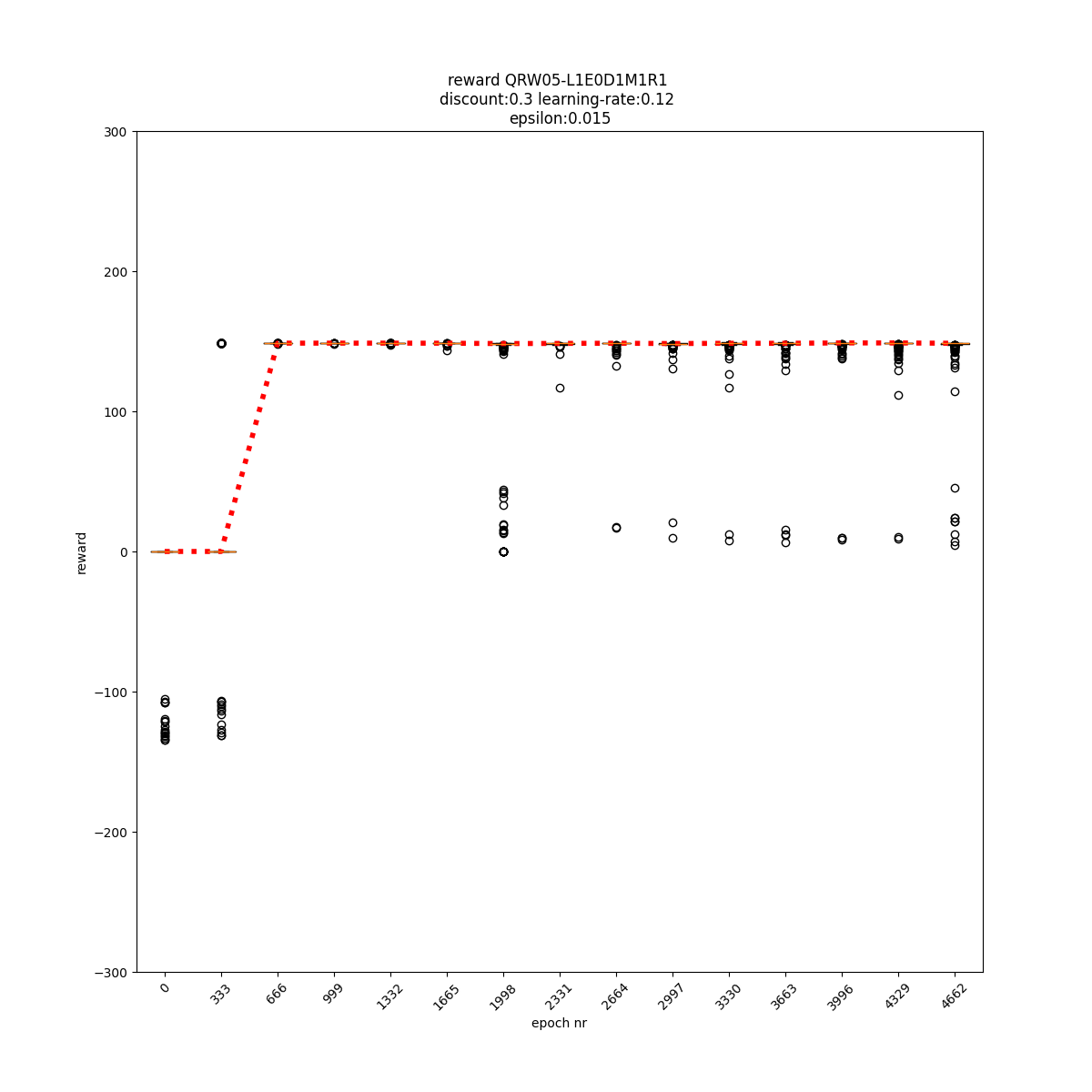

L1 E0 D1 M1 R1

q-values
video 0 video 1 video 2 video 3
video 4 video 5 video 6 video 7
video 8 video 9 video 10

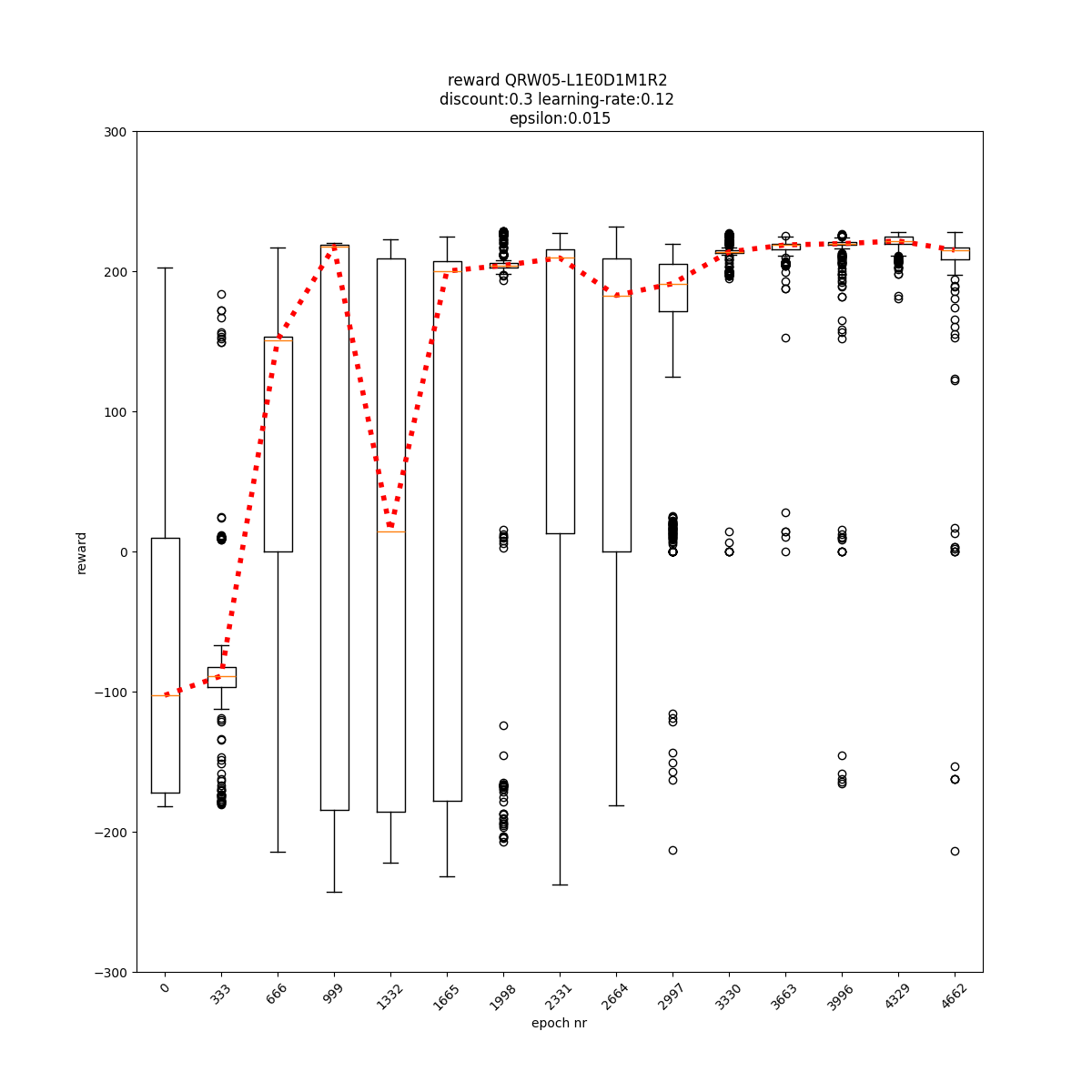

L1 E0 D1 M1 R2

q-values
video 0 video 1 video 2 video 3
video 4 video 5 video 6 video 7
video 8 video 9 video 10

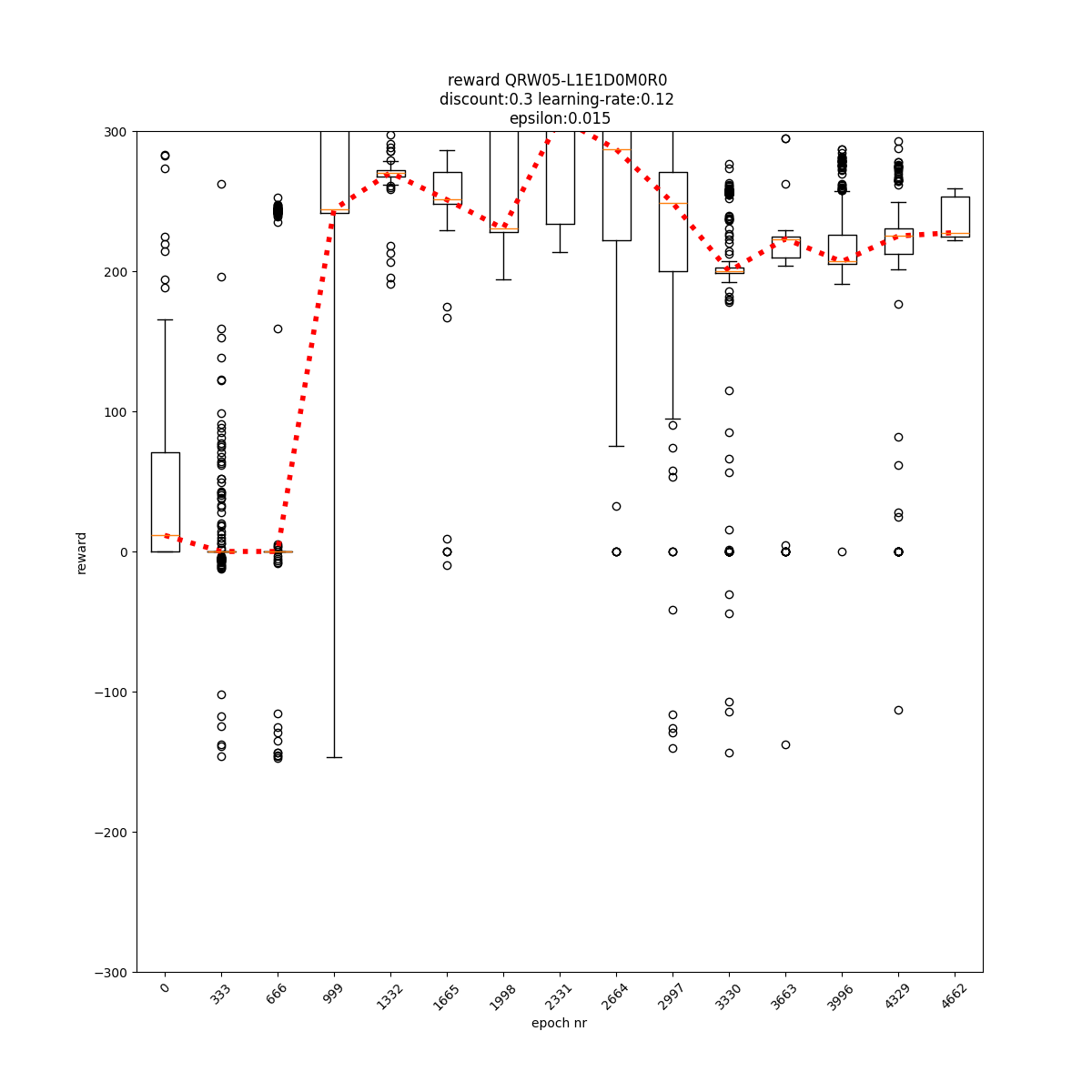

L1 E1 D0 M0 R0

q-values
video 0 video 1 video 2 video 3
video 4 video 5 video 6 video 7
video 8 video 9 video 10

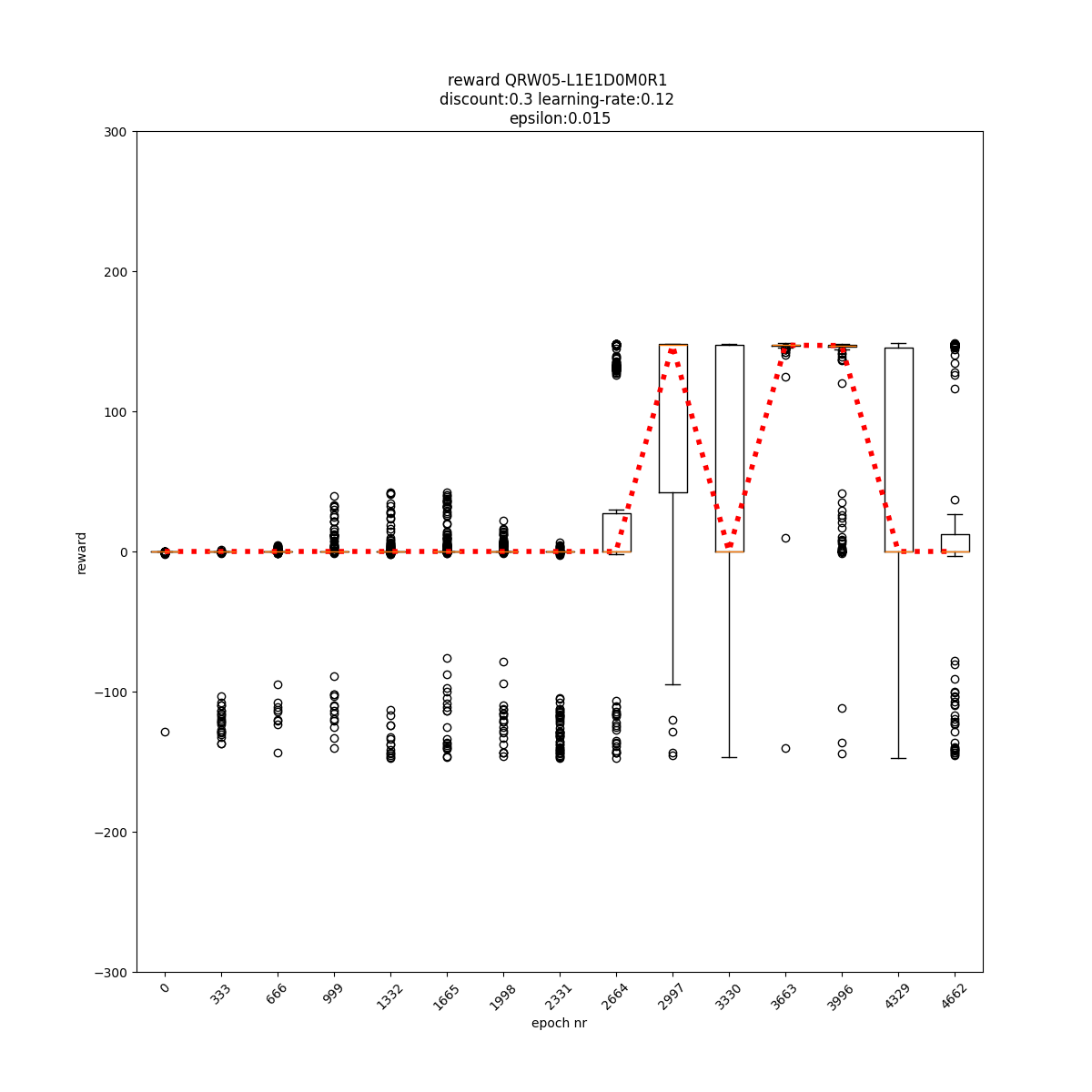

L1 E1 D0 M0 R1

q-values
video 0 video 1 video 2 video 3
video 4 video 5 video 6 video 7
video 8 video 9 video 10

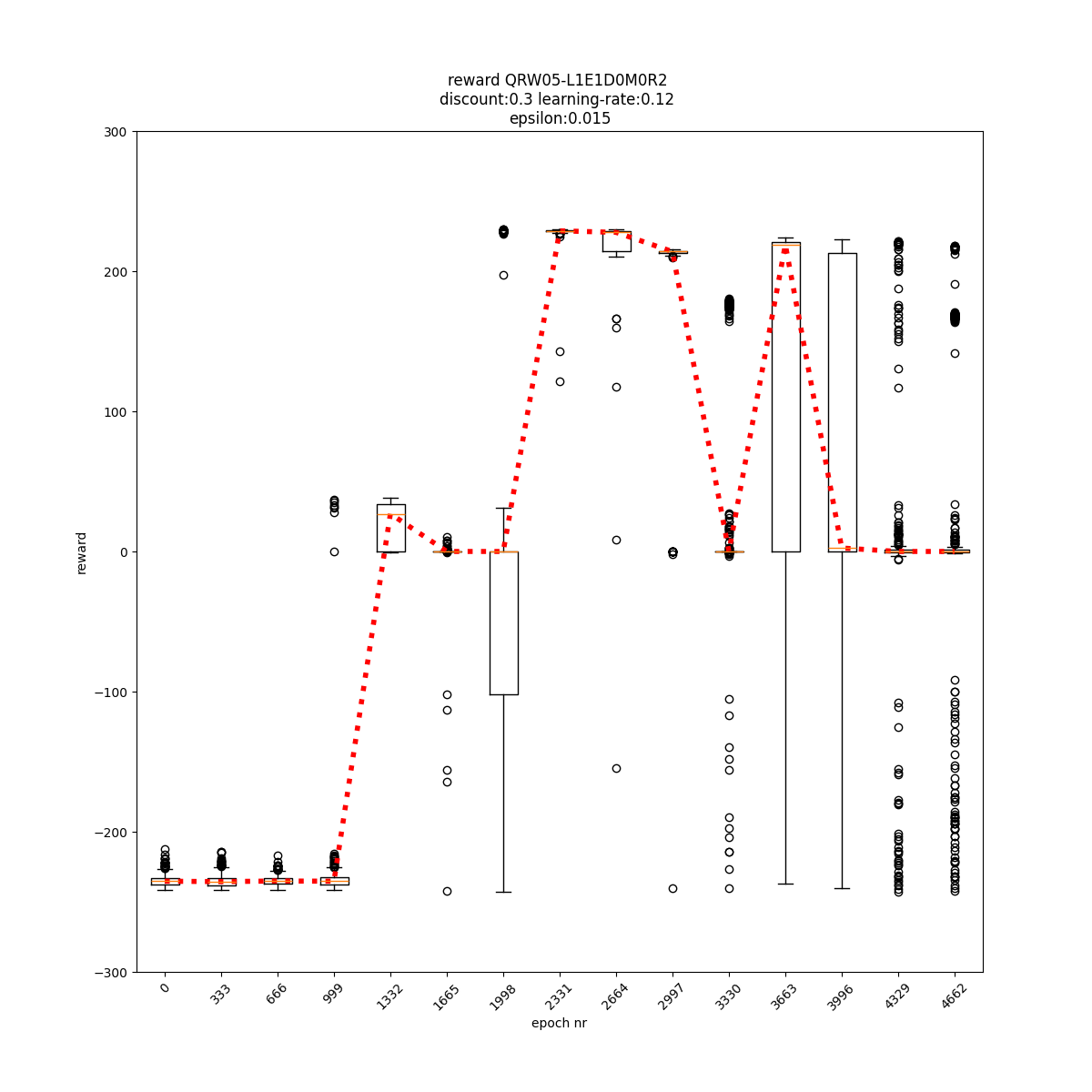

L1 E1 D0 M0 R2

q-values
video 0 video 1 video 2 video 3
video 4 video 5 video 6 video 7
video 8 video 9 video 10

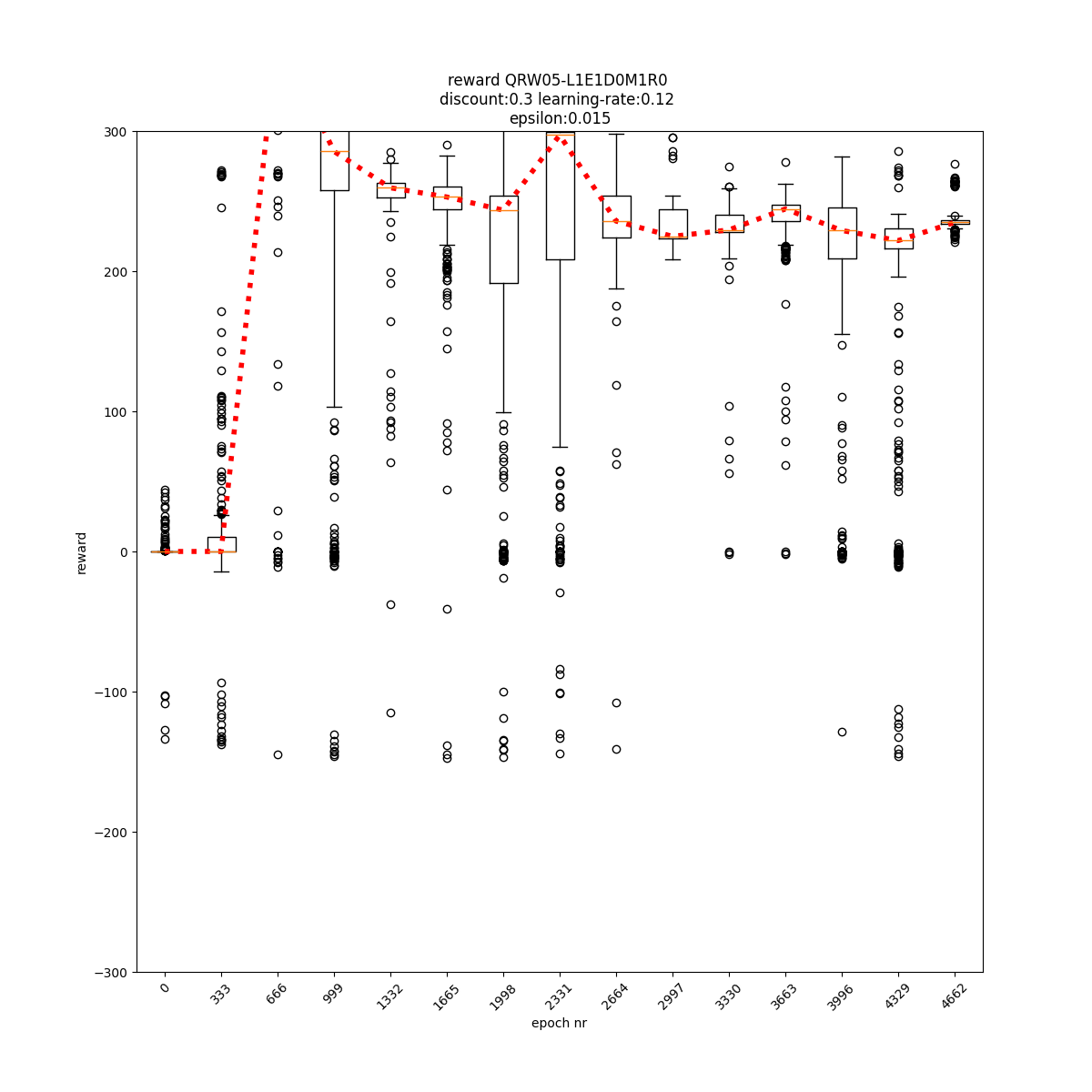

L1 E1 D0 M1 R0

q-values
video 0 video 1 video 2 video 3
video 4 video 5 video 6 video 7
video 8 video 9 video 10

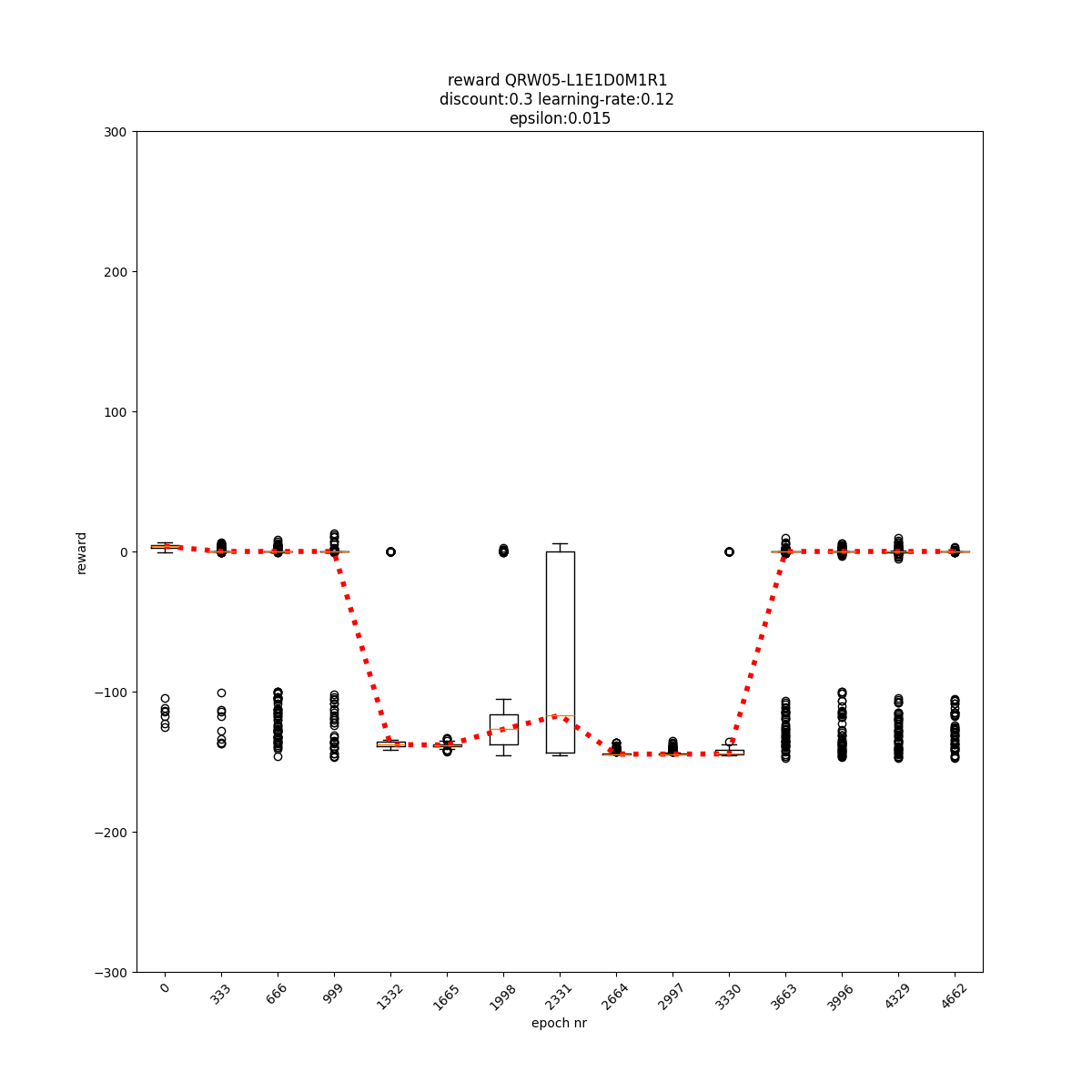

L1 E1 D0 M1 R1

q-values
video 0 video 1 video 2 video 3
video 4 video 5 video 6 video 7
video 8 video 9 video 10

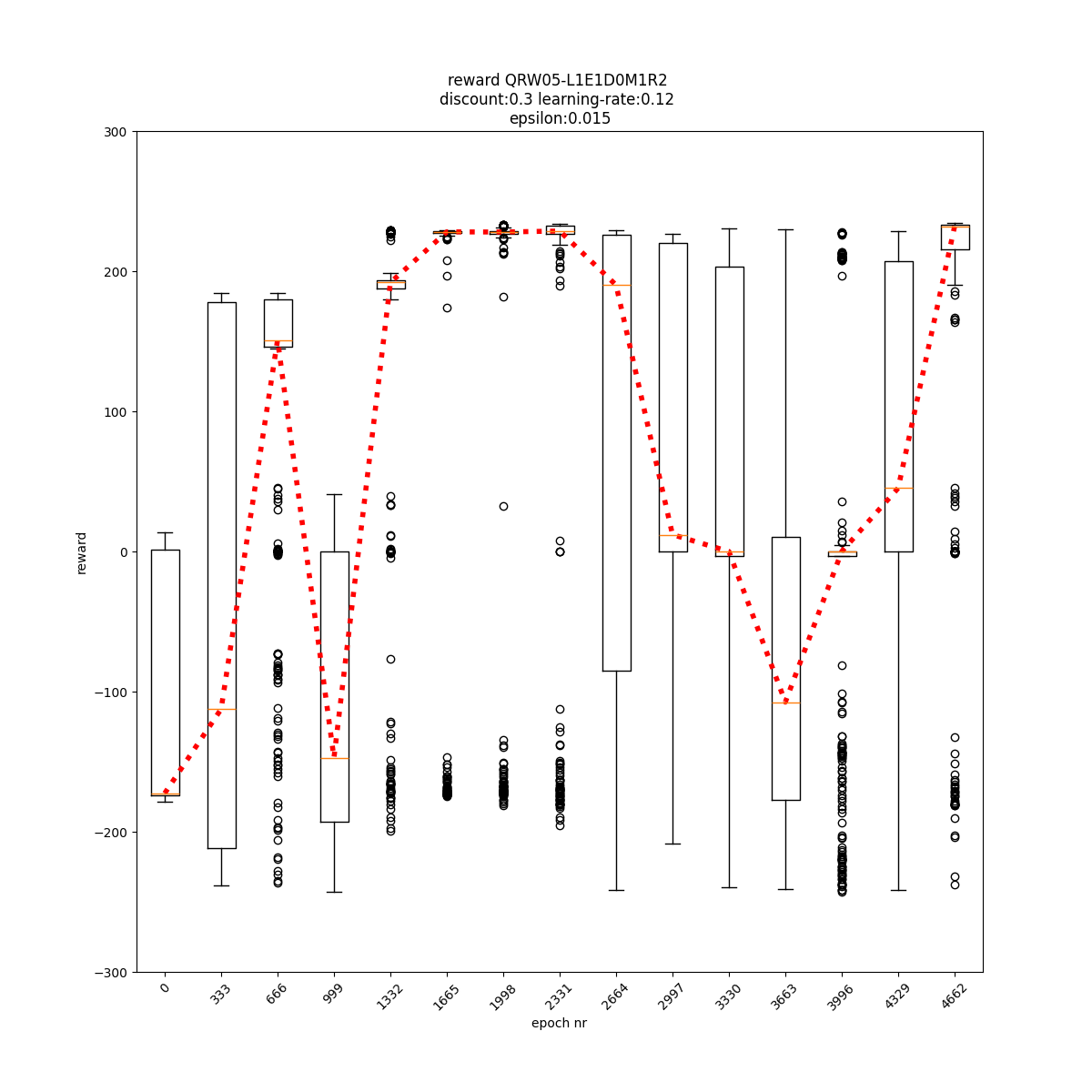

L1 E1 D0 M1 R2

q-values
video 0 video 1 video 2 video 3
video 4 video 5 video 6 video 7
video 8 video 9 video 10

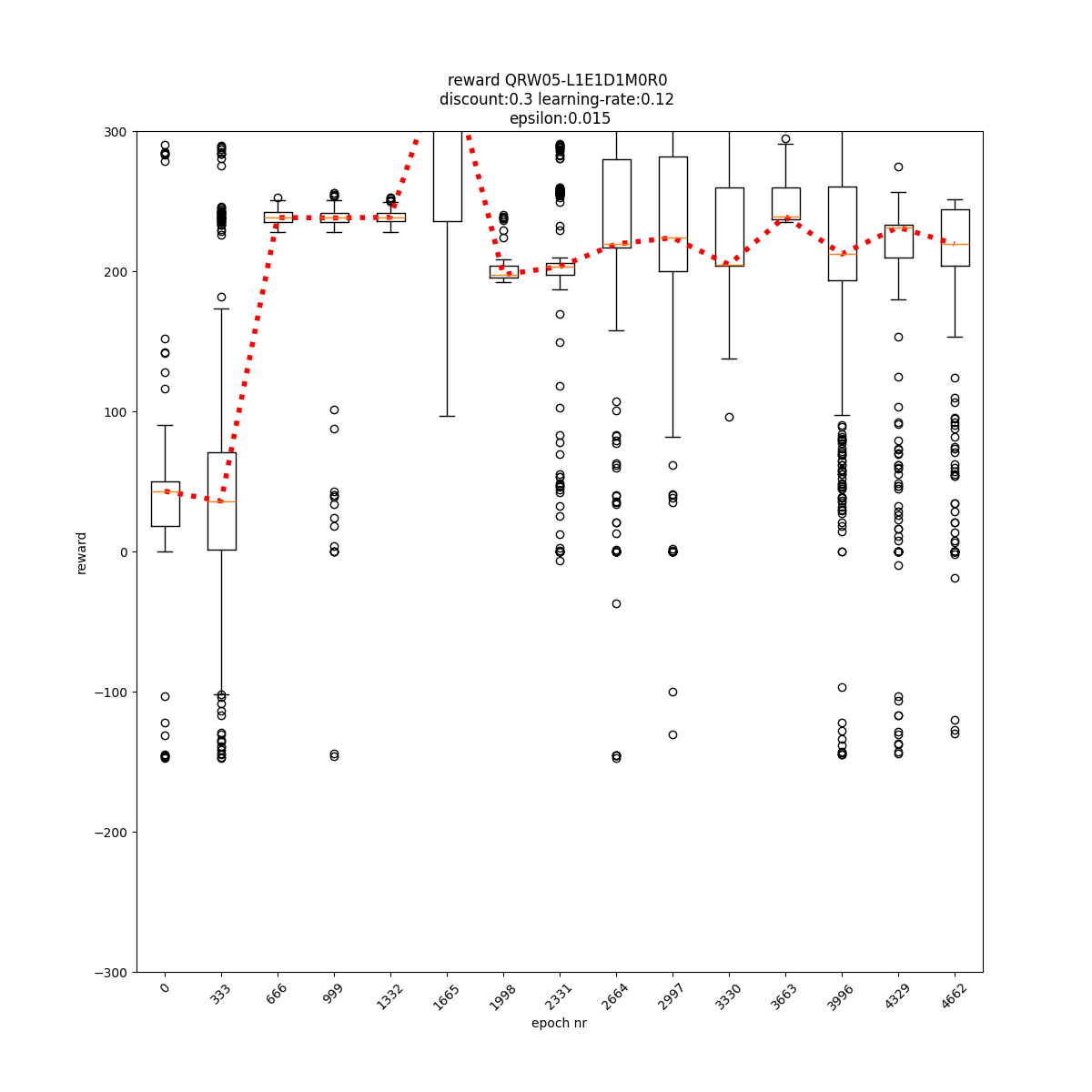

L1 E1 D1 M0 R0

q-values
video 0 video 1 video 2 video 3
video 4 video 5 video 6 video 7
video 8 video 9 video 10

L1 E1 D1 M0 R1

q-values
video 0 video 1 video 2 video 3
video 4 video 5 video 6 video 7
video 8 video 9 video 10

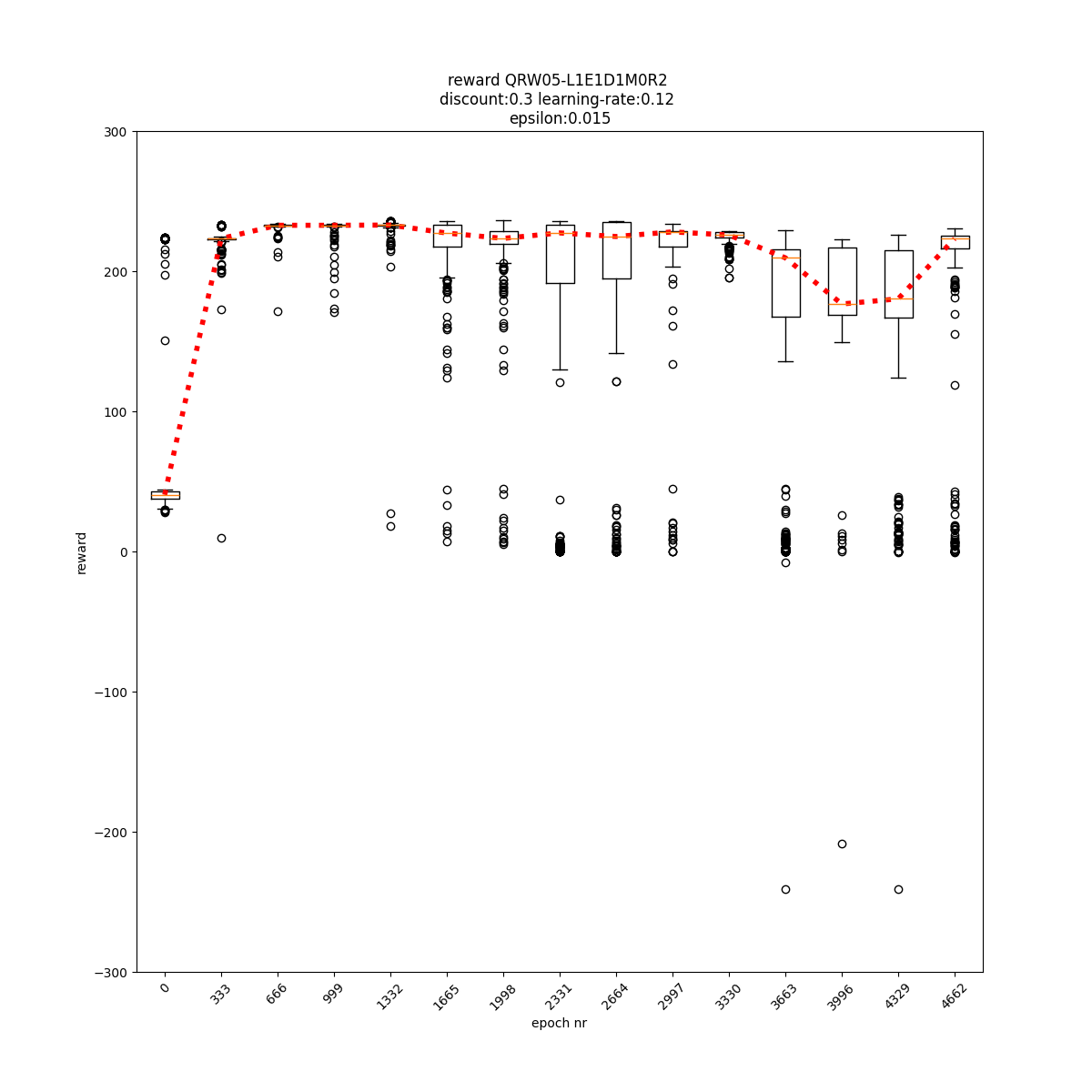

L1 E1 D1 M0 R2

q-values
video 0 video 1 video 2 video 3
video 4 video 5 video 6 video 7
video 8 video 9 video 10

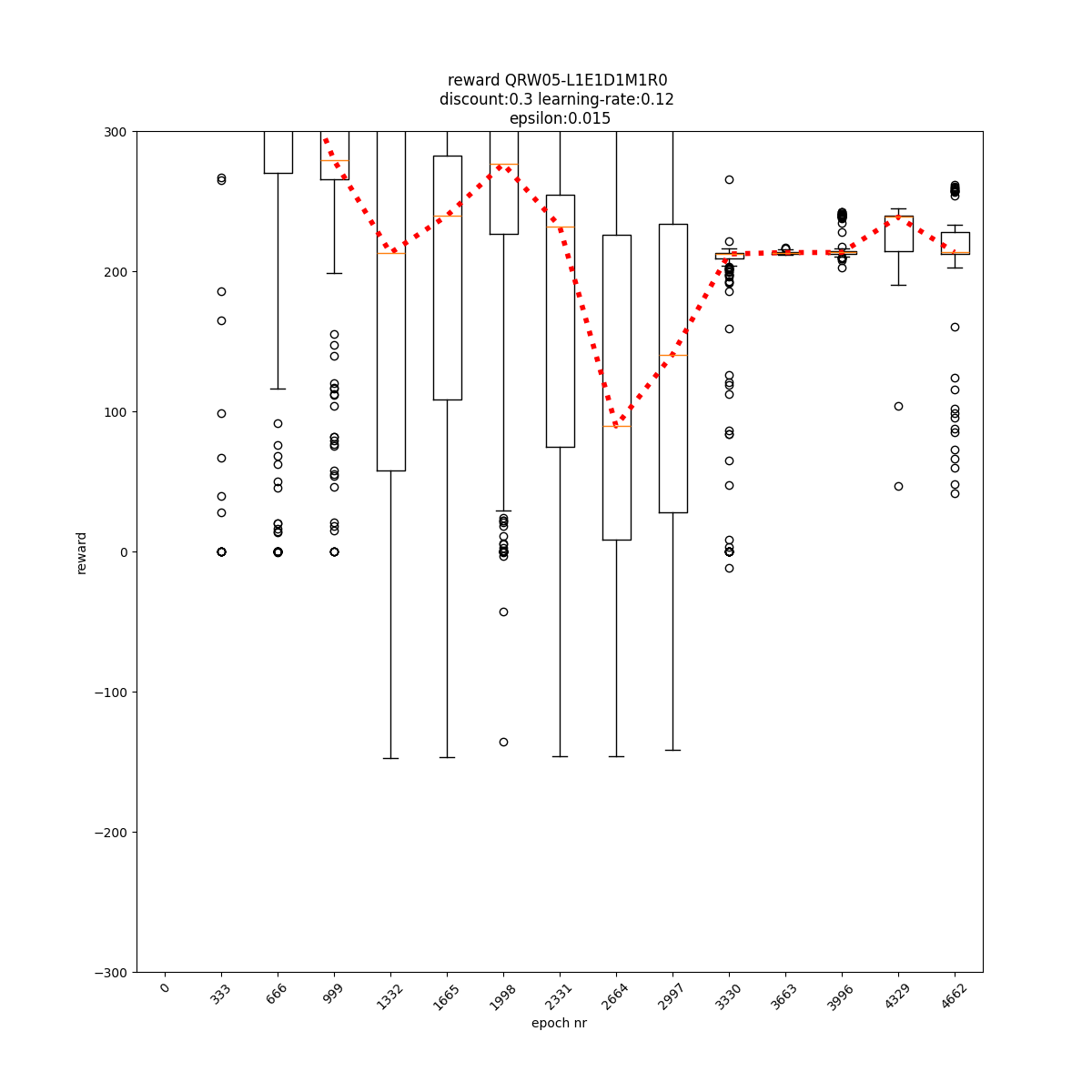

L1 E1 D1 M1 R0

q-values
video 0 video 1 video 2 video 3
video 4 video 5 video 6 video 7
video 8 video 9 video 10

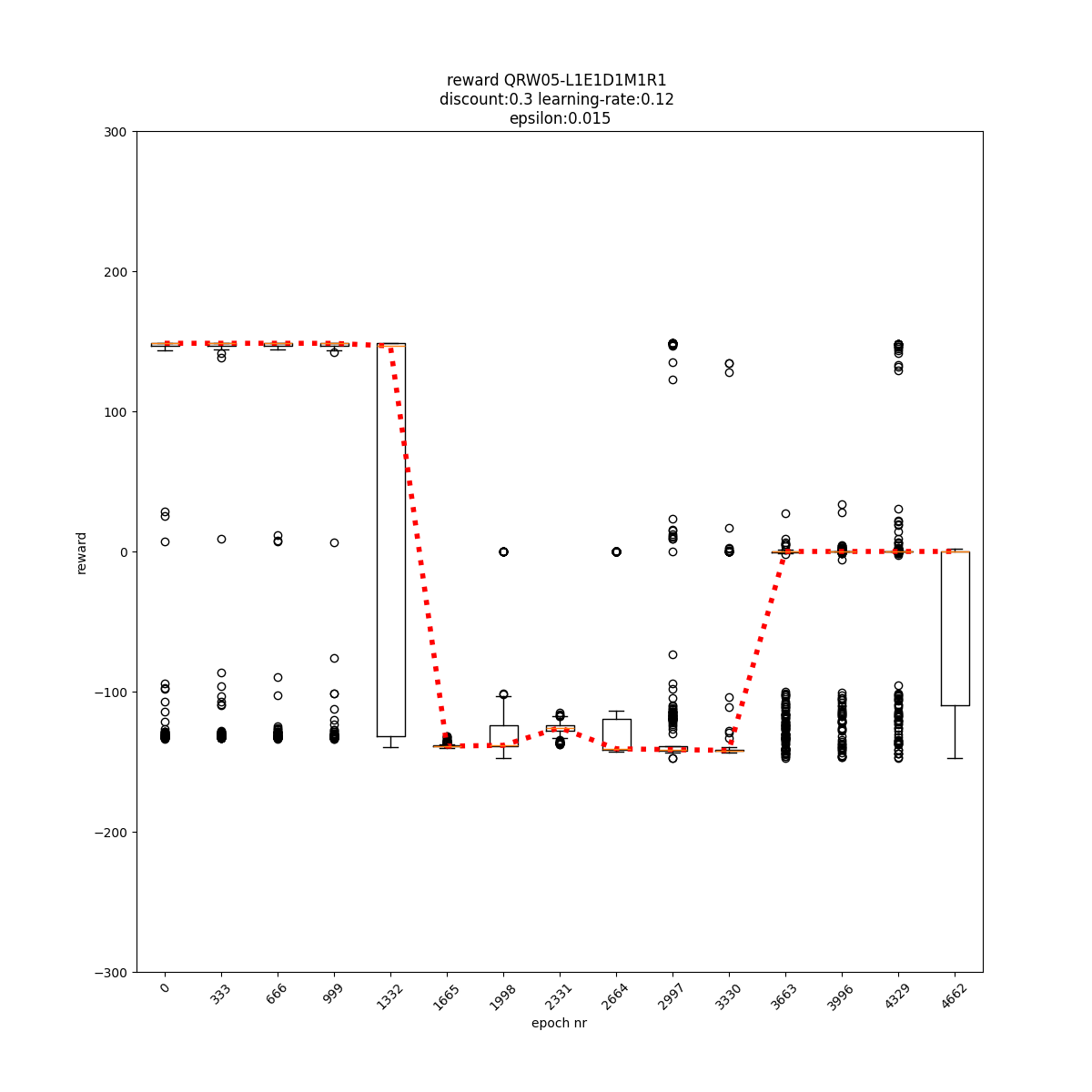

L1 E1 D1 M1 R1

q-values
video 0 video 1 video 2 video 3
video 4 video 5 video 6 video 7
video 8 video 9 video 10

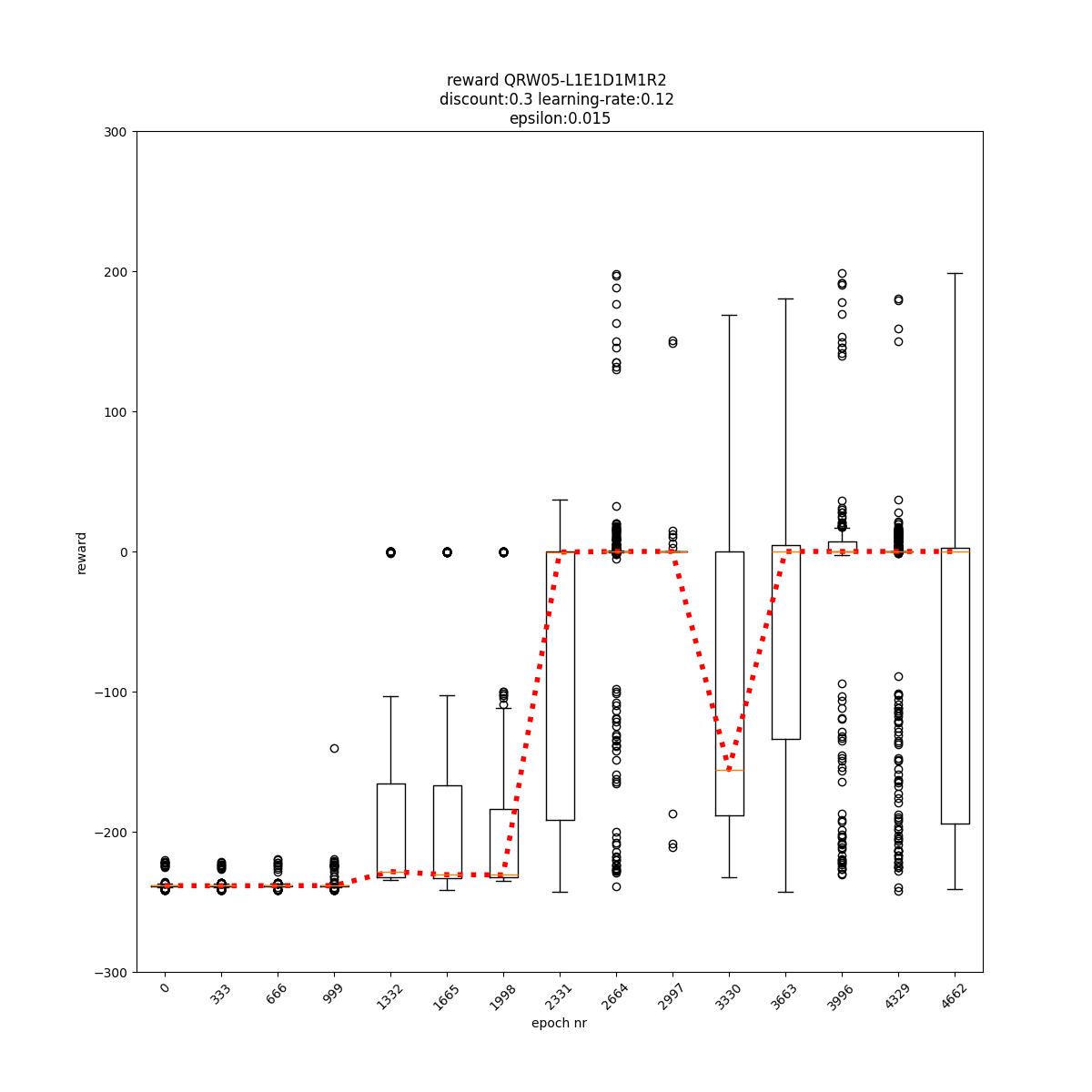

L1 E1 D1 M1 R2

q-values
video 0 video 1 video 2 video 3
video 4 video 5 video 6 video 7
video 8 video 9 video 10
